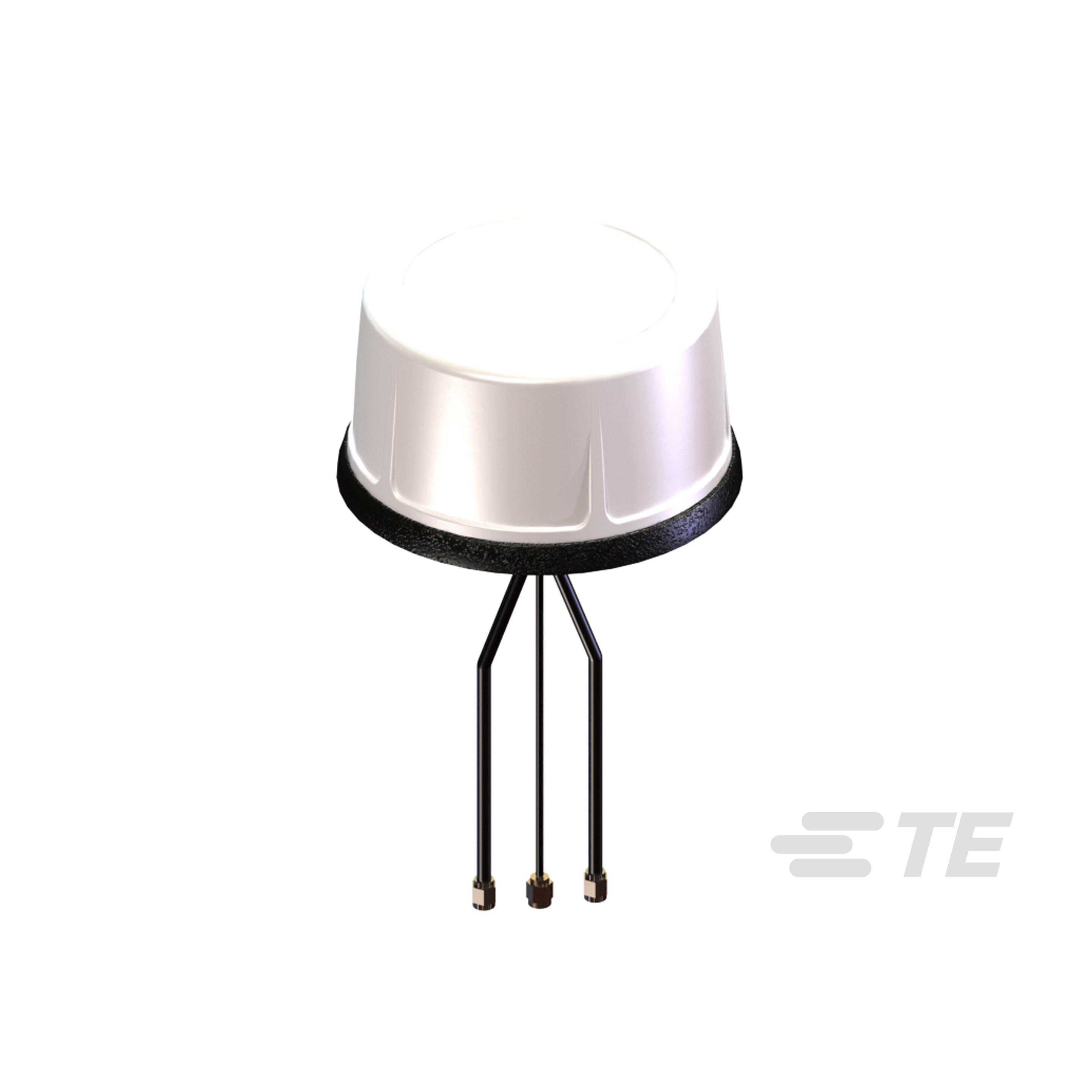

Vehicular MIMO Series
Antennas 5-PORT 4G-WIFI-GNSS, WHT,GNSS
Manufacturer: TE Connectivity AMP Connectors
Catalog
Antennas 5-PORT 4G-WIFI-GNSS, WHT,GNSS
Beta
⌘K
Antennas 5-PORT 4G-WIFI-GNSS, WHT,GNSS
Antennas 5-PORT 4G-WIFI-GNSS, WHT,GNSS
Antennas 5-PORT 4G-WIFI-GNSS, WHT,GNSS
| Part | Termination | RF Family/Standard | Features | Frequency (Center/Band) | Mounting Type | Applications | Ingress Protection | Antenna Type | Height (Max) [z] | Height (Max) [Max] [z] | Power - Max [Max] | Gain | Frequency Group | Frequency Range [Max] | Frequency Range [Min] | VSWR | Number of Bands |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | RP-SMA Male SMA Male | Cellular Navigation WiFi | Cable - 5.18M | 1.561 GHz 1.575 GHz 1.602 GHz 2.205 GHz 2.5 GHz 829 MHz 5400 MHz | Panel Mount | 3G/4G BeiDou Galileo GLONASS GNSS GPS LTE Wi-Fi | IP67 | Dome | 75 mm | 2.953 in | 50 W | 2 dBi 4.1 dBi 4.2 dBi 4.9 dBic 28 dBi | Wide Band | 1.563 GHz 1.576 GHz 1.607 GHz 2.7 GHz 5.9 GHz 960 MHz | 1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 2.3 GHz 4.9 GHz 698 MHz | 2 | 7 |
