AEAC Series

Catalog

RF ANTENNA, COMBO, GPS/GSM/WIFI, 2.4 GHZ TO 2.4835 GHZ, 3 DBI, LINEAR, ADHESIVE

Part	Frequency Group	VSWR	Number of Bands	Antenna Type	Applications	Gain	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	RF Family/Standard	Frequency (Center/Band)	Height (Max) [diameter]	Height (Max) [diameter]	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Height (Max) [z]	Height (Max) [Max] [z]	Termination	Ingress Protection

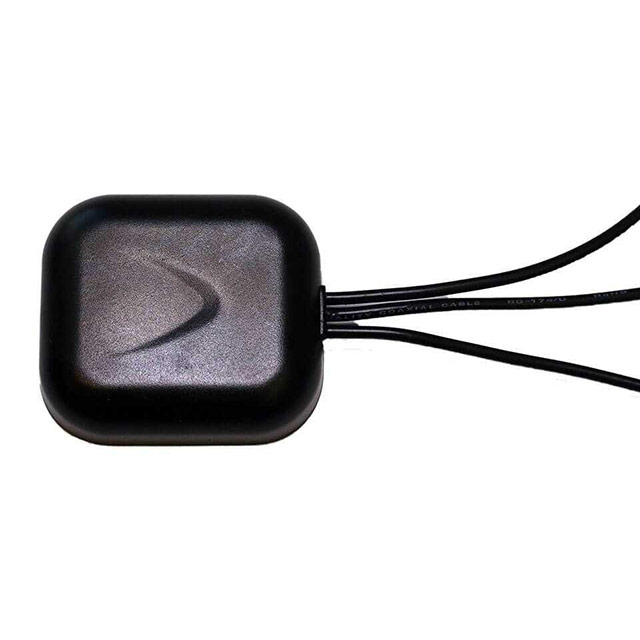

Abracon LLC AEACBA059015-C3GSW	Wide Band	1.5 2	4	Dome	2G 3G GPS GSM Wi-Fi	2 dBi 3 dBi	1.576 GHz 2.17 GHz 2.484 GHz 960 MHz	1.574 GHz 1.71 GHz 2.4 GHz 824 MHz	Adhesive	Cellular Navigation WiFi	1.575 GHz 1.94 GHz 2.442 GHz 892 MHz	0.591 in	15 mm
Abracon LLC AEACAQ190012-S915	UHF	2	1	Whip Straight	ISM LoRa LPWAN Sigfox	3.5 dBi			Connector Mount	General ISM	915 MHz			10 W	1 GHz	300 MHz	190 mm	7.48 in	I-PEX MHF1 U.FL (UMCC)
Abracon LLC AEACBD059015-C3GSW	Wide Band	1.5 2	4	Dome	2G 3G GPS GSM Wi-Fi	2 dBi 3 dBi	1.576 GHz 2.17 GHz 2.484 GHz 960 MHz	1.574 GHz 1.71 GHz 2.4 GHz 824 MHz	Adhesive Magnetic	Cellular Navigation WiFi	1.575 GHz 1.94 GHz 2.442 GHz 892 MHz	0.591 in	15 mm							IP65 IP67
Abracon LLC AEACCA115021-S698	Wide Band	2		Blade	DCS GSM LTE UMTS	2 dBi	2.655 GHz 960 MHz	1.71 GHz 698 MHz	Adhesive	Cellular	1.575 GHz 1.602 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz			10 W					Fakra SMA
