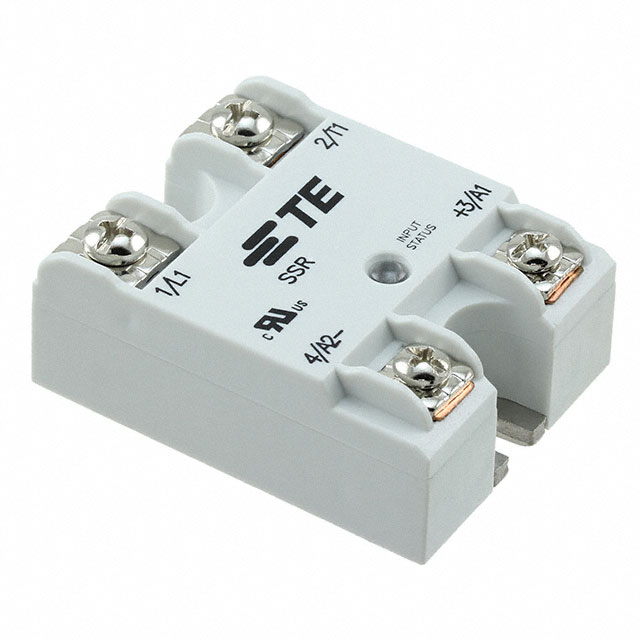

Potter & Brumfield SSR Series

Catalog

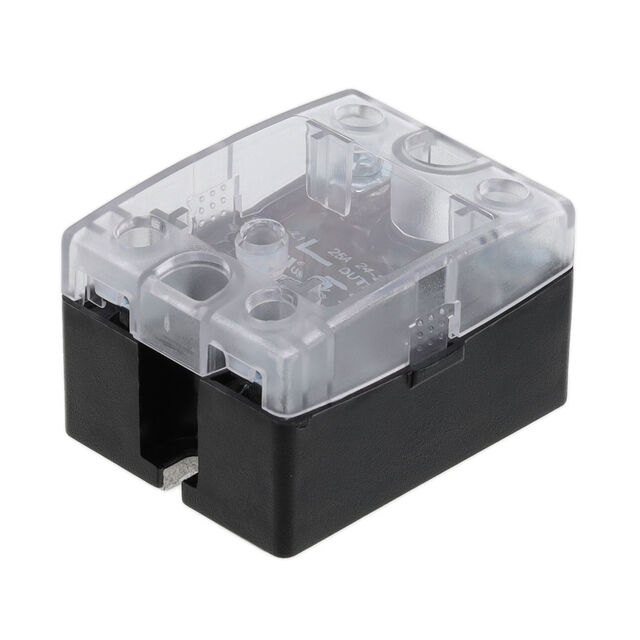

SSR-240D25=PANEL MOUNT,25A,240VAC-DC I/P

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Load Current	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type
TE Connectivity AMP Connectors SSR-240D25	80 °C	-30 ░C	Screw Terminal	24 V	280 V	Hockey Puck	AC Zero Cross	25 A	3 V	32 VDC	Chassis Mount
TE Connectivity AMP Connectors SSR-240A50	80 °C	-30 ░C	Screw Terminal	24 V	280 V	Hockey Puck	AC Zero Cross	50 A	90 VAC	280 VAC/DC	Chassis Mount
TE Connectivity AMP Connectors SSR-480D50	80 °C	-30 ░C	Screw Terminal	48 V	660 V	Hockey Puck	AC Zero Cross	50 A	4 V	32 VDC	Chassis Mount
TE Connectivity AMP Connectors SSR-240D50	80 °C	-30 ░C	Screw Terminal	24 V	280 V	Hockey Puck	AC Zero Cross	50 A	4 V	32 VDC	Chassis Mount
TE Connectivity AMP Connectors SSR480D125R
TE Connectivity AMP Connectors SSR-240A25R
TE Connectivity AMP Connectors SSR-480A25	80 °C	-30 ░C	Screw Terminal	48 V	660 V	Hockey Puck	AC Zero Cross	25 A	90 VAC	280 VAC/DC	Chassis Mount
TE Connectivity AMP Connectors SSR-480D50R
TE Connectivity AMP Connectors SSR-480D25R
TE Connectivity AMP Connectors SSR-240D125R
