NJG1809 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K

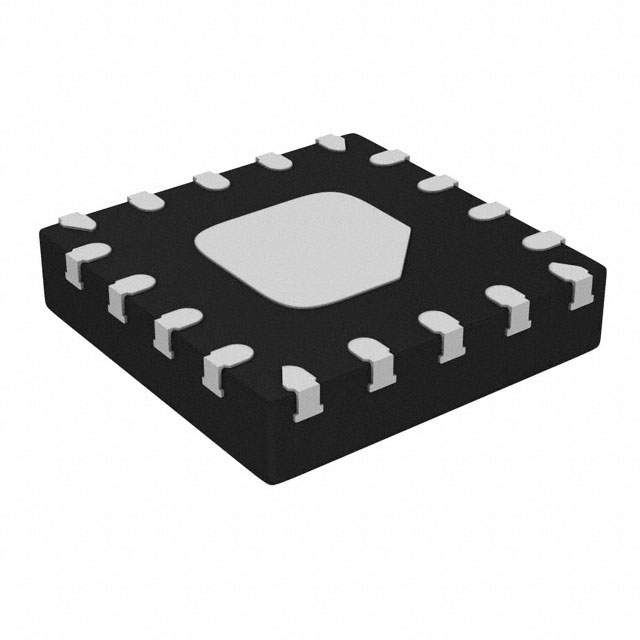

IC RF SWITCH SP4T 6GHZ 18EQFN
| Part | Insertion Loss | IIP3 | Operating Temperature [Min] | Operating Temperature [Max] | Frequency Range | Supplier Device Package | Test Frequency | Isolation | Package / Case | RF Type | Mounting Type | Features | Impedance | Voltage - Supply [Min] | Voltage - Supply [Max] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 0.5 dB | 60 dBm | -40 C | 105 ░C | 6 GHz | 18-EQFN (2x2) | 5.85 GHz | 23 dB | 18-XFQFN Exposed Pad | 802.11a/b/g/n/ac LTE WLAN | Surface Mount | DC Blocked | 50 Ohms | 2.5 V | 5 V | SP4T |
