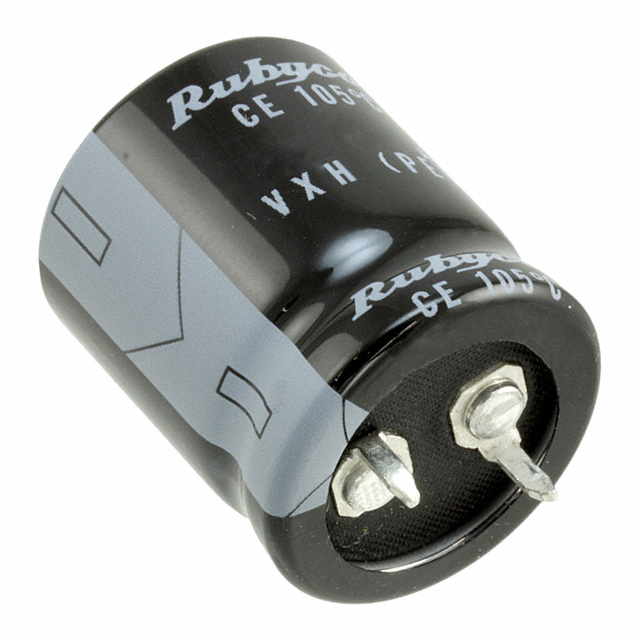

VXH Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Part	Lifetime @ Temp.	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Tolerance	Package / Case	Applications	Polarization	Mounting Type	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 250VXH330MEFCSN22X30	5000 Hrs	1.54 A	105 ░C	-25 °C	2.31 A	20 %	Radial Can - Snap-In	General Purpose	Polar	Through Hole	330 µF	0.394 in	10 mm	1.26 in	32 mm	250 V	0.866 "	22 mm
Rubycon 450VXH270MEFCSN35X30	5000 Hrs	1.48 A	105 ░C	-25 °C	2.072 A	20 %	Radial Can - Snap-In	General Purpose	Polar	Through Hole	270 µF	0.394 in	10 mm	1.26 in	32 mm	450 V	1.378 "	35 mm
Rubycon 200VXH1000MEFCSN25X45	5000 Hrs	2.63 A	105 ░C	-25 °C	3.945 A	20 %	Radial Can - Snap-In	General Purpose	Polar	Through Hole	1000 µF	0.394 in	10 mm			200 VDC	0.984 "	25 mm	1.85 in	47 mm
Rubycon 400VXH330MEFCSN25X40	5000 Hrs	1.66 A	105 ░C	-25 °C	2.324 A	20 %	Radial Can - Snap-In	General Purpose	Polar	Through Hole	330 µF	0.394 in	10 mm	1.654 in	42 mm	400 V	0.984 "	25 mm
