1719434 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

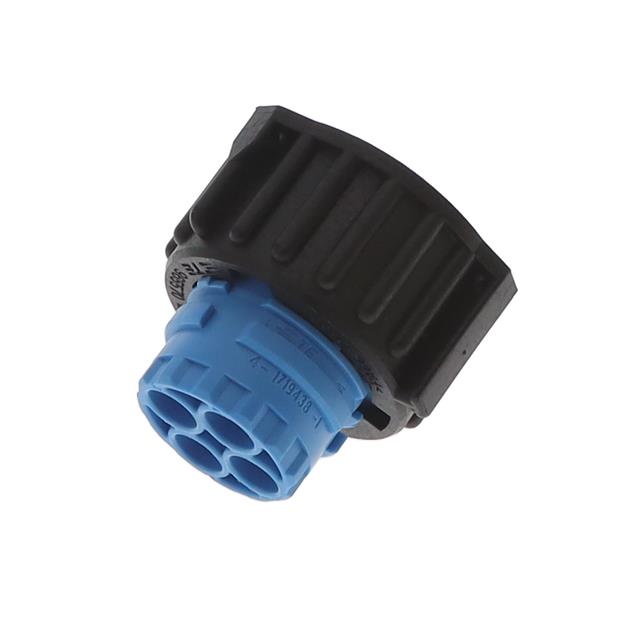

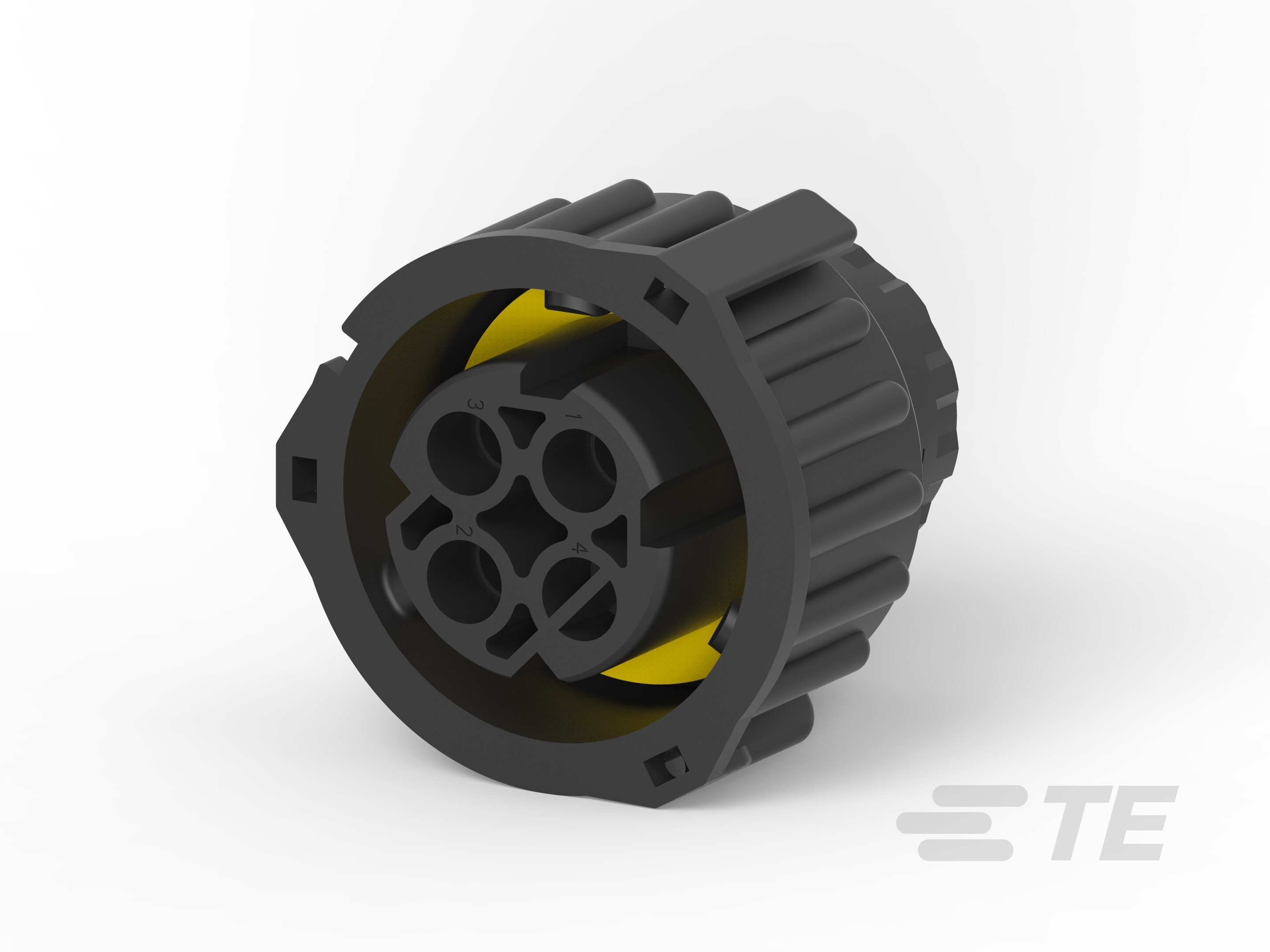

4 POS DIA 2.5 SOCKET CONNECTOR HSG
| Part | Note | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Material Flammability Rating | Mounting Type | Connector Type | Contact Size | Orientation [custom] | Fastening Type | Features | Type | Ingress Protection | Housing Color | Shell Material | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | Circular | 120 °C | -40 C | Unshielded | UL94 HB | Free Hanging (In-Line) | Plug Housing | 2.5 mm | 1 | Bayonet Lock | Coupling Nut | For Female Sockets | IP67/IP69K | Black | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | |
 TE Connectivity AMP Connectors | Contacts Not Included | Circular | 120 °C | -40 C | Unshielded | UL94 HB | Free Hanging (In-Line) | Plug Housing | 2.5 mm | 4 | Bayonet Lock | Coupling Nut | For Female Sockets | IP67/IP69K | Black Blue | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 4 |
