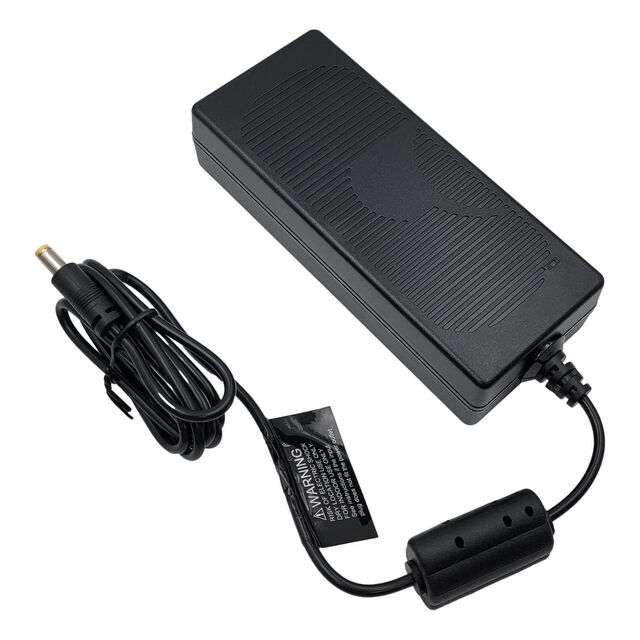

TR9KI3750 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 24V 90W
| Part | Polarization | Current - Output (Max) [Max] | Region Utilized | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Input Type | Output Connector [x] | Output Connector [diameter] | Output Connector | Cord Length | Cord Length | Voltage - Output | Applications | No Load Power Consumption | Efficiency | Input Connector | Form | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Positive Center | 3.75 A | International | 50 °C | 0 °C | 90 W | 2.46 in | 149.4 mm | 33.5 mm | 5.88 " | 62.6 mm | 1.32 in | 264 VAC | 90 VAC | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Cord (Sold Separately) | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 1.2 m | 47.2 in | 24 V | Household Appliances ITE (Commercial) Medical | 150 mW | Level VI | IEC 320-C8 | Desktop (Class II) | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI |
