MEAS 85 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

NISO,GAGE,NO FIT,RIBBON CBL

Part	Output Type	Output [Min]	Output [Max]	Pressure Type	Operating Pressure	Operating Pressure	Termination Style	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Accuracy	Maximum Pressure	Maximum Pressure	Features	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply
TE Connectivity AMP Connectors 85-050G-0R
TE Connectivity AMP Connectors 85-005G-0P
TE Connectivity AMP Connectors 85-300G-0U	Wheatstone Bridge	0 mV	100 mV	Vented Gauge	300 PSI	2068.43 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %	6205.28 kPa	900 PSI	Temperature Compensated	No Port
TE Connectivity AMP Connectors 85-100A-0R	Wheatstone Bridge	0 mV	100 mV		100 PSI	689.48 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %			Temperature Compensated	No Port	300 PSI	2068.43 kPa
TE Connectivity AMP Connectors 85-500G-4C	Wheatstone Bridge	0 mV	100 mV	Vented Gauge	500 PSI	3447.38 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %	10342.14 kPa		Temperature Compensated	No Port	1500 PSI

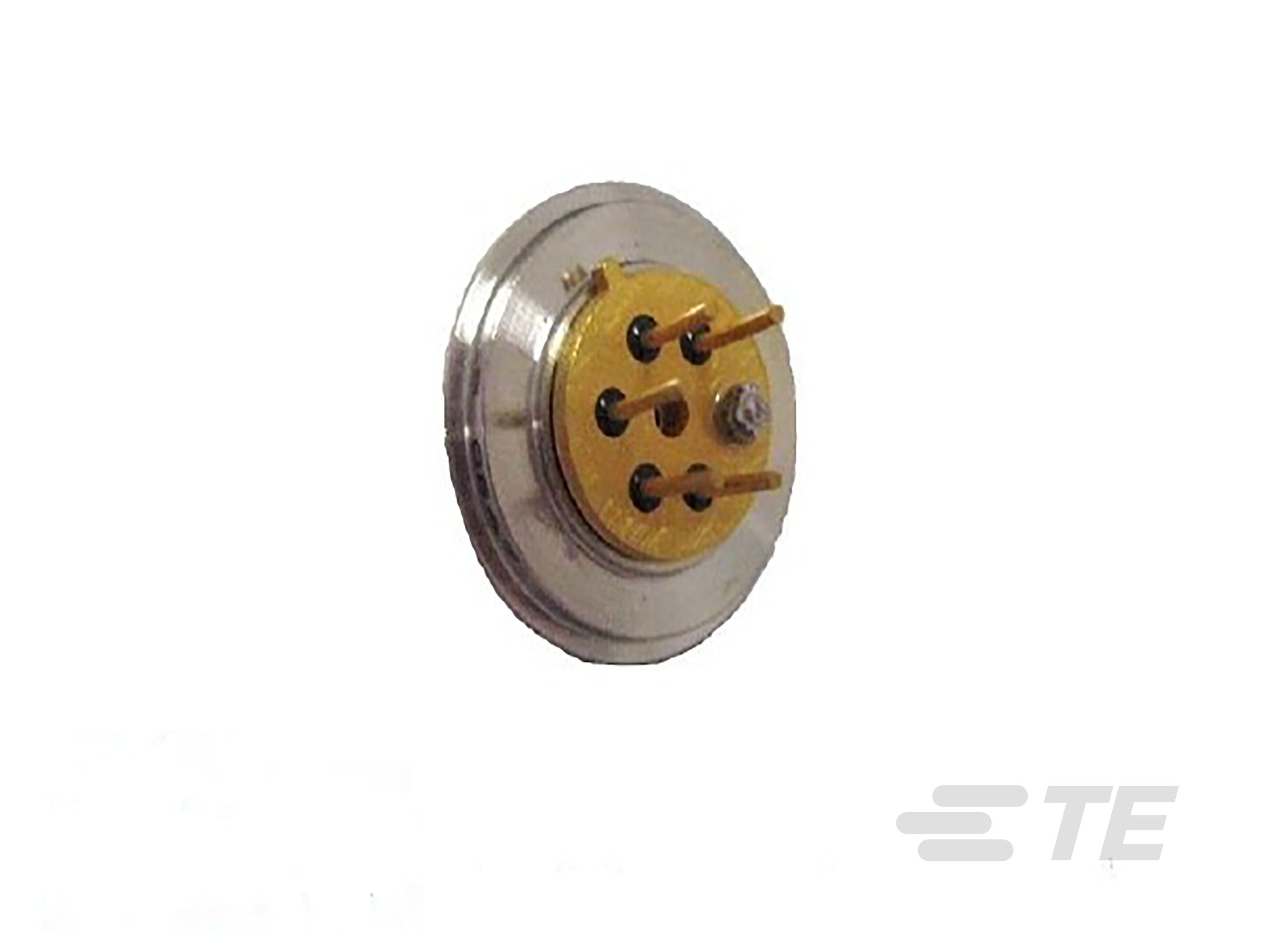

TE Connectivity AMP Connectors 85-030A-0U	Wheatstone Bridge	0 mV	100 mV		30 PSI	206.84 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %	620.53 kPa		Temperature Compensated	No Port	90 PSI

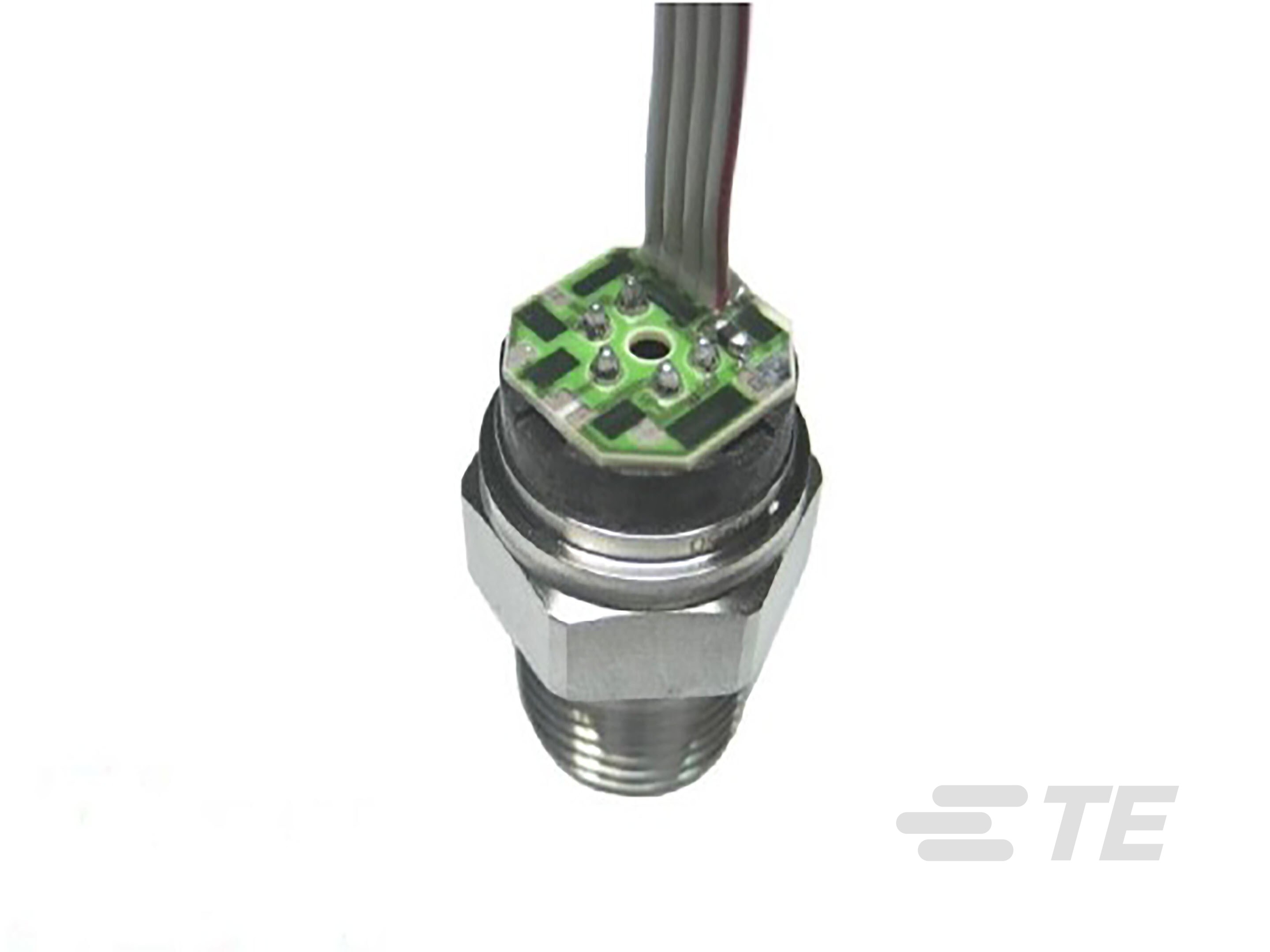

TE Connectivity AMP Connectors 85CV-030A-0R	Wheatstone Bridge	0 mV	100 mV		30 PSI	206.84 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount		620.53 kPa		Temperature Compensated	No Port	90 PSI		14 V
TE Connectivity AMP Connectors 85-300G-0R	Wheatstone Bridge	0 mV	100 mV	Vented Gauge	300 PSI	2068.43 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %	6205.28 kPa	900 PSI	Temperature Compensated	No Port
TE Connectivity AMP Connectors 85CV-050A-0R
TE Connectivity AMP Connectors 85-100A-8R	Wheatstone Bridge	0 mV	100 mV		100 PSI	689.48 kPa	Cable with Connector	Cylinder	125 °C	-40 C	Board Mount	0.1 %			Temperature Compensated	No Port	300 PSI	2068.43 kPa
