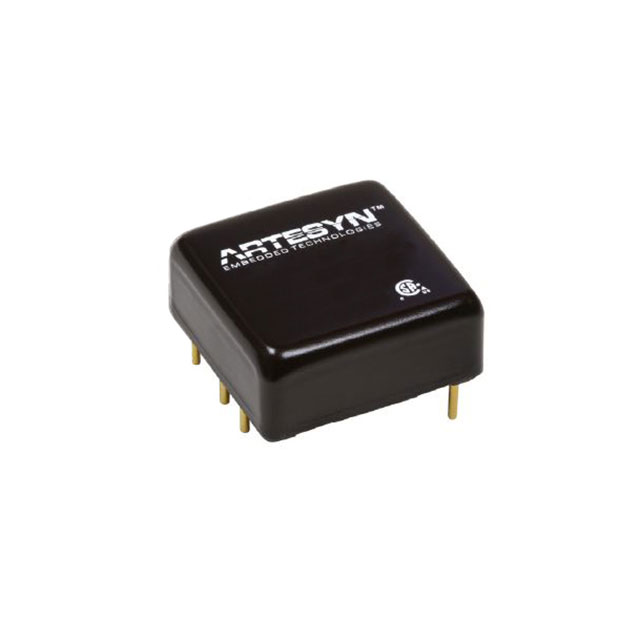

AXA00B Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 12V 10W
| Part | Power (Watts) | Efficiency | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Features | Voltage - Output 1 | Type | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 10 W | 86 % | 830 mA | 36 V | Through Hole | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6-DIP Module 5 Leads | Remote On/Off SCP | 12 V | Isolated Module | 9 V | ITE (Commercial) | 85 °C | -40 C | 1 |
