ZWS100 Series
Manufacturer: TDK Corporation
Beta
⌘K

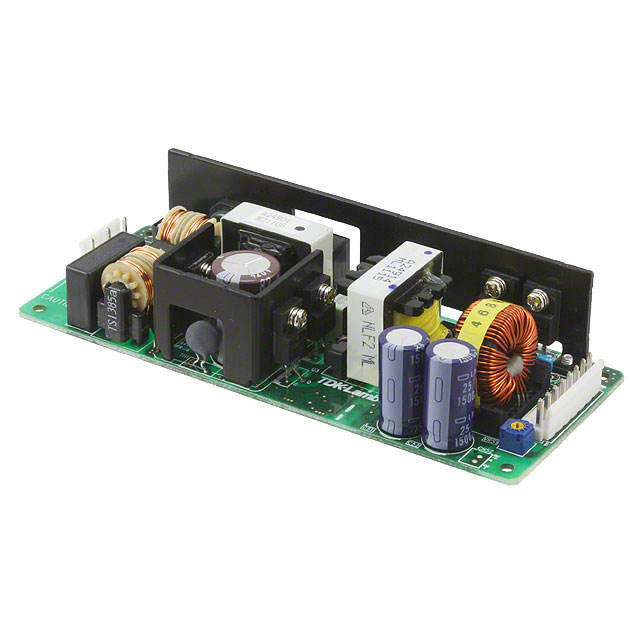

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 100 W, 15 V
| Part | Voltage - Isolation | Applications | Current - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Type | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Number of Outputs | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Approval Agency | Efficiency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 3000 V | ITE (Commercial) | 6.7 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame Conformal Coated | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 15 V | CE | 88 % | Chassis Mount |
 TDK Corporation | 3000 V | ITE (Commercial) | 6.7 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 15 V | CE | 86 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 5 V | CE | 84 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Universal Input | 70 °C | -10 °C | 5 V | CE | 86 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 12 V | CE | 88 % | Chassis Mount | |
TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Enclosed | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 5 V | CE | 86 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame Conformal Coated | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 5 V | CE | 86 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 3.3 V | CE | Chassis Mount | |
 TDK Corporation | 3000 V | ITE (Commercial) | 20 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Enclosed | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 3.3 V | CE | 84 % | Chassis Mount |
TDK Corporation | 3000 V | ITE (Commercial) | 4.3 A | 33 mm | 2.44 " | 6.1 " | 1.3 in | 155 mm | 62 mm | Open Frame | 265 VAC | 85 VAC | 100 W | 1 | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 70 °C | -10 °C | 24 V | CE | 87 % | Chassis Mount |
