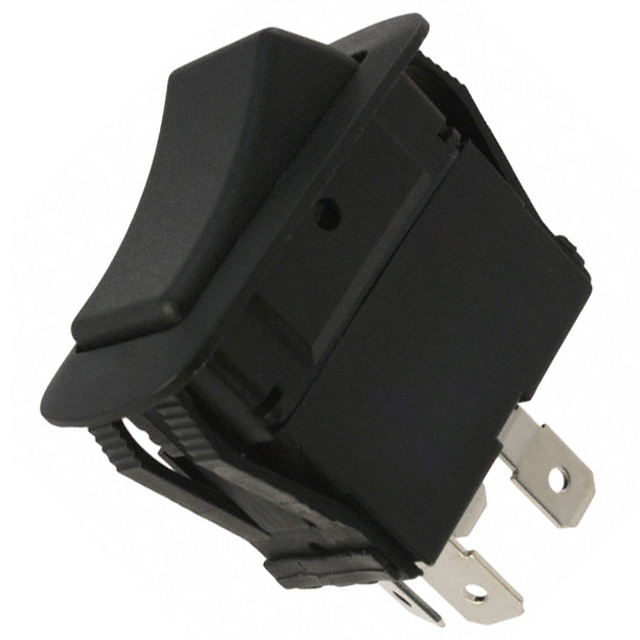

GRB260F Series
Manufacturer: CW Industries
Beta
⌘K
ROCKER SWITCHES ON-OFF ROCKER IP56
| Part | Mechanical Life | Ingress Protection | Color - Actuator/Cap | Voltage Rating - AC | Actuator Marking | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Approval Agency | Actuator Type | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | IP56 - Dust Protected Water Resistant | Black | 125 V | No Marking | On-Off | DPST | 85 °C | -20 ░C | Quick Connect - 0.250" (6.3mm) | cULus ENEC | Concave (Curved) | 20 A 21 A | 21.2 mm | 36.6 mm | Panel Mount Snap-In | 14 V |
