ZE-NA277 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Switch Function	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Release Force	Current Rating (Amps)	Electrical Life	Actuator Type	Termination Style	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Differential Travel	Differential Travel	Operating Force	Mounting Type	Ingress Protection	Pretravel	Pretravel

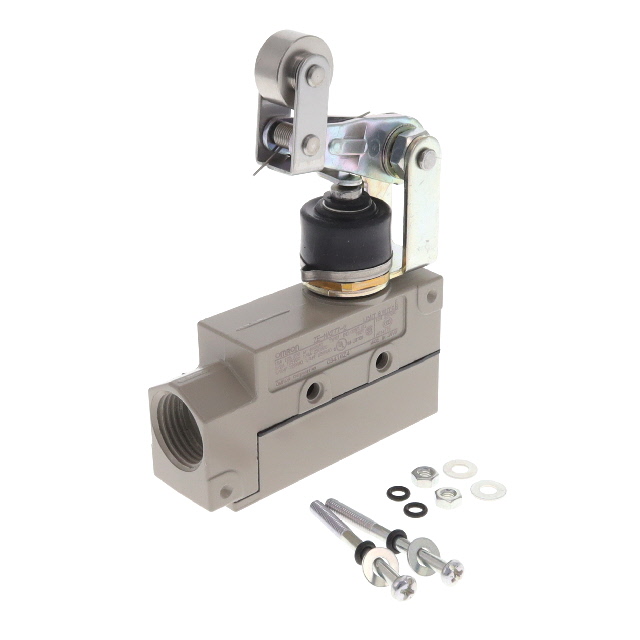

Omron Automation and Safety ZE-NA277-2	On-Mom	SPDT	-10 °C	80 °C	125 V	230 gf	15 A 500 mA	500000 Cycles	Lever Roller	Screw Terminal	10000000 Cycles	0.235 "	6 mm	125 VDC	0.016 in	0.4 mm	640 gf	Chassis Mount	IP65 - Dust Tight Water Resistant	5 mm	0.197 "

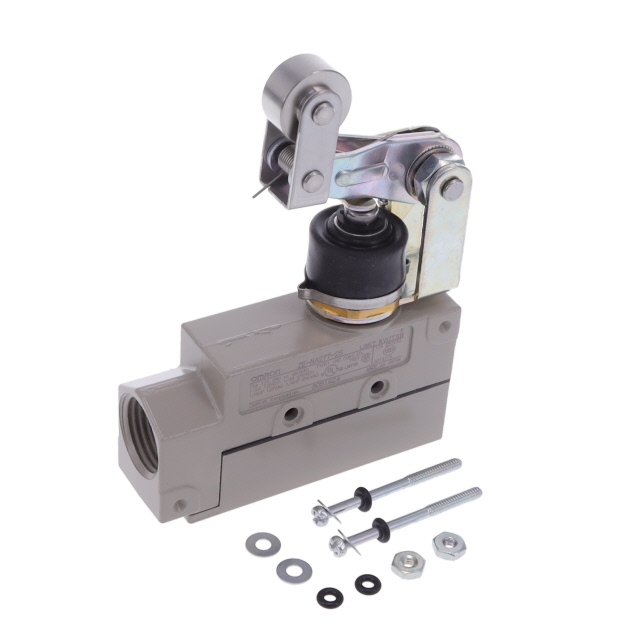

Omron Automation and Safety ZE-NA277-2S	On-Mom	SPDT	-10 °C	80 °C	125 V	230 gf	15 A 500 mA	500000 Cycles	Lever Roller	Screw Terminal	10000000 Cycles	0.235 "	6 mm	125 VDC	0.016 in	0.4 mm	640 gf	Chassis Mount	IP65 - Dust Tight Water Resistant	5 mm	0.197 "
