W22IPB Series
Manufacturer: c3controls
Beta
⌘K

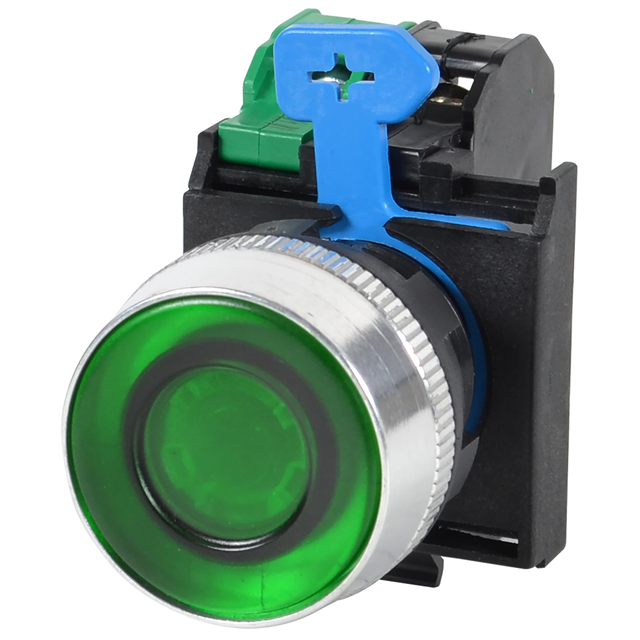

22MM IPB 24V GN LED/LENS 1NO/1NC
| Part | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Voltage (Nominal) | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Switch Function | Type | Actuator Marking | Color - Actuator/Cap | Ingress Protection | Termination Style | Illumination Type, Color | Actuator Type | Circuit | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 5000000 Cycles | 55 °C | -40 C | 72 V | 24 VAC/DC | 28 V | Panel Mount Rear | 2.5 A 10 A | Off-Mom On-Mom | Illuminated Standard | No Marking | Green | IP66 - Dust Tight Water Resistant | Screw Terminal | Green LED | Button Flush Round | DPST-NO/NC | 22.5 mm |
