SC08-11 Series

Catalog

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 61 MCD, 1, 20.32 MM

Part	Display Type	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Current - Test	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Power Dissipation (Max) [Max]	Package / Case [x]	Package / Case [x]

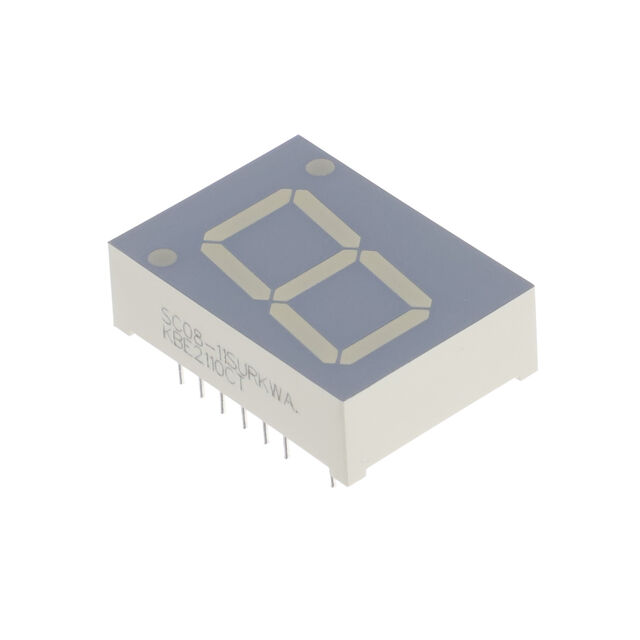

Kingbright SC08-11SURKWA	7-Segment	Red	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	645 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA	15.24 mm	0.6 in 13 Leads	16-DIP	1.95 V	61 mcd	75 mw
Kingbright SC08-11YWA	7-Segment	Yellow	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	590 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA			18-DIP	2.1 V	7.9 mcd	75 mw	15.24 mm	0.6 in
Kingbright SC08-11CGKWA	7-Segment	Green	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm		1	0.8 in	20.32 mm	Common Cathode	20 mA	15.24 mm	0.6 in 13 Leads	16-DIP	2.1 V	25 mcd	75 mw
Kingbright SC08-11GWA	7-Segment	Green	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	565 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA			18-DIP	2.2 V	13 mcd	62.5 mW	15.24 mm	0.6 in
Kingbright SC08-11SYKWA	7-Segment	Yellow	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	590 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA	15.24 mm	0.6 in 13 Leads	16-DIP	2 V	140 mcd	75 mw
Kingbright SC08-11EWA	7-Segment	Red	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	627 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA	15.24 mm	0.6 in 13 Leads	16-DIP	2 V	8 mcd	75 mw
Kingbright SC08-11SRWA	7-Segment	Red	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	660 nm	1	0.8 in	20.32 mm	Common Cathode	20 mA	15.24 mm	0.6 in 13 Leads	16-DIP	1.85 V	36 mcd	75 mw
