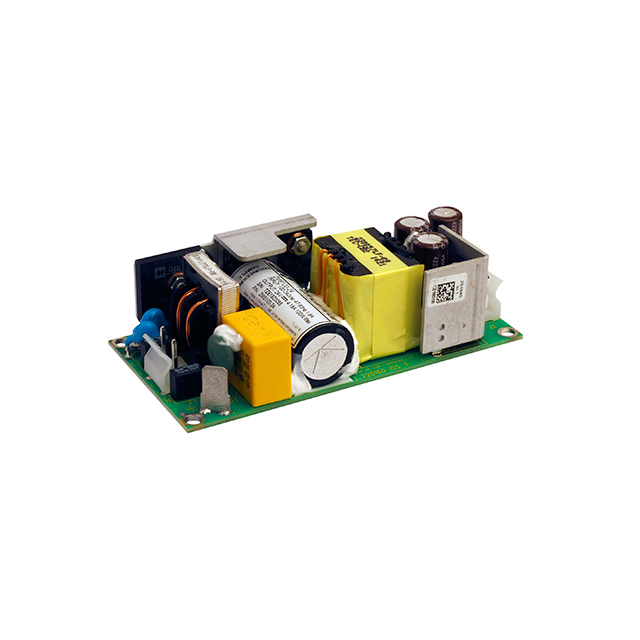

ZMS100 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 100W, 80 W, 85V AC TO 264V AC
| Part | Current - Output 1 | Number of Outputs | Type | Power (Watts) | Applications | Voltage - Output 1 | Features | Mounting Type | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1.67 A | 1 | Open Frame | 80 W 100 W | ITE (Commercial) Medical | 48 V | Adjustable Output Universal Input | Chassis Mount | 4000 V | 264 VAC | 90 VAC | 70 °C | -20 °C | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | 87 % |
 TDK Corporation | 5.4 A | 1 | Open Frame | 80 W 100 W | ITE (Commercial) Medical | 15 V | Adjustable Output Universal Input | Chassis Mount | 4000 V | 264 VAC | 90 VAC | 70 °C | -20 °C | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | 87 % |
