SJ5-43 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

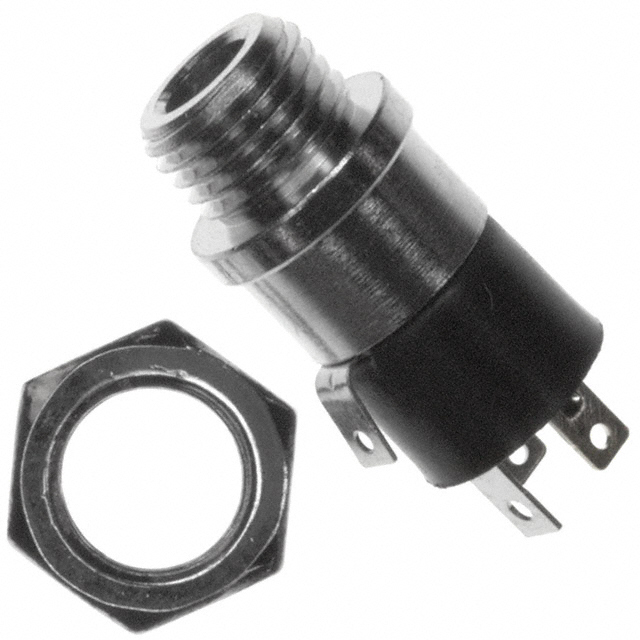

CONN JACK 4COND 3.5MM PNL MT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Internal Switch(s) | Mounting Type | Signal Lines | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Termination | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Connector Type | Body Color | Housing Material | Panel Hole Size | Panel Hole Size | Body Material | Voltage - Rated | Contact Material | Current Rating (Amps) | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | -20 ░C | 60 °C | Unshielded | Panel Mount | Stereo (4 Conductor TRRS) | 0.142 in | 3.6 mm | Female | Solder Eyelet(s) | 0.125 in | 3.5 mm | 0.141 in | 4 | 4 | Phone Jack | ||||||||||
Same Sky (Formerly CUI Devices) | -20 ░C | 60 °C | Unshielded | Panel Mount | Stereo (4 Conductor TRRS) | 0.142 in | 3.6 mm | Female | Solder Eyelet(s) | 0.125 in | 3.5 mm | 0.141 in | 4 | 4 | Phone Jack | Black Silver | Polybutylene Terephthalate (PBT) | 7 mm | 0.276 in | Brass | 34 VAC/DC | Copper Alloy | 1 A | Nickel |
