FP1005 Series
Power Inductors - SMD 120nH 60A Flat-Pac FP1005
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD 120nH 60A Flat-Pac FP1005
Beta
⌘K
Power Inductors - SMD 120nH 60A Flat-Pac FP1005
Power Inductors - SMD 120nH 60A Flat-Pac FP1005
Power Inductors - SMD 120nH 60A Flat-Pac FP1005
| Part | Inductance | Tolerance | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Type | DC Resistance (DCR) | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

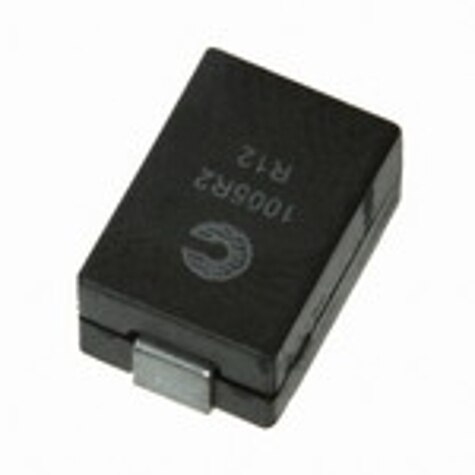

 Eaton - Electronics Division | 120 nH | 10 % | Ferrite | 125 °C | -40 C | 60 A | 4.95 mm | 0.195 in | 100 kHz | 50 A | 7 mm | 0.402 in | 0.276 in | 10.2 mm | Nonstandard | Surface Mount | Drum Core Wirewound | 0.47 mOhm | Unshielded |

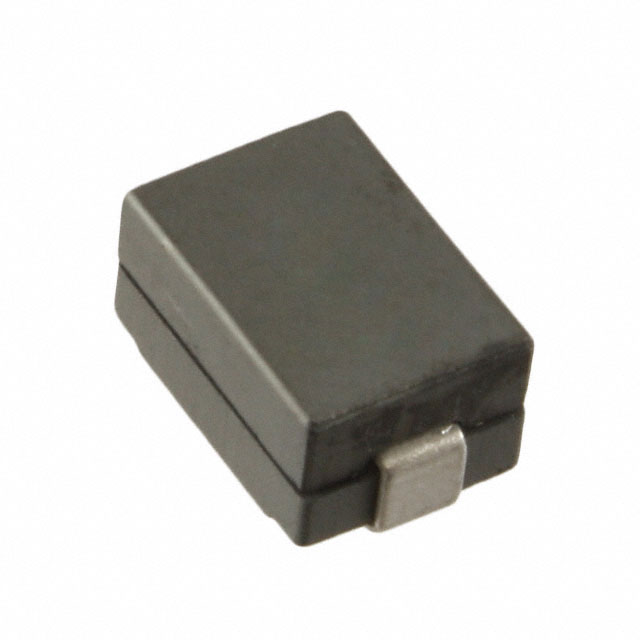

 Eaton - Electronics Division | 100 nH | 10 % | Ferrite | 125 °C | -40 C | 73 A | 4.95 mm | 0.195 in | 100 kHz | 53 A | 7 mm | 0.402 in | 0.276 in | 10.2 mm | Nonstandard | Surface Mount | Drum Core Wirewound | 0.39 mOhm | Unshielded |
