ESD5 Series
Manufacturer: ON Semiconductor
Beta
⌘K

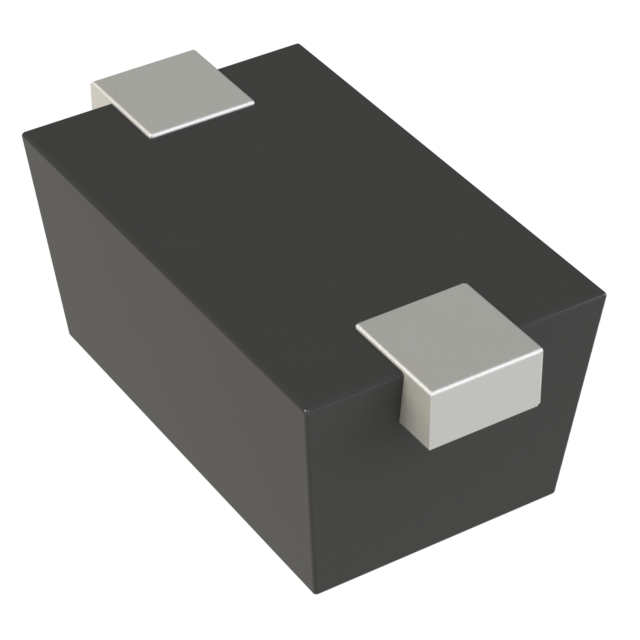

TVS DIODE 3.3VWM 14.1VC SOD523
| Part | Capacitance @ Frequency | Package / Case | Mounting Type | Voltage - Reverse Standoff (Typ) | Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Power - Peak Pulse | Power Line Protection | Current - Peak Pulse (10/1000µs) | Voltage - Clamping (Max) @ Ipp [Max] | Applications | Voltage - Breakdown (Min) [Min] | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 105 pF | SC-79 SOD-523 | Surface Mount | 3.3 V | Zener | -55 °C | 150 °C | SOD-523 | 158 W | 11.2 A | 14.1 V | General Purpose | 5 V | 1 | |
 ON Semiconductor | 80 pF | SC-79 SOD-523 | Surface Mount | 5 V | Zener | -55 °C | 150 °C | SOD-523 | 9.4 A | 18.6 V | General Purpose | 1 |
