1571586 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN IC DIP SOCKET 64POS GOLD

Part	Material Flammability Rating	Contact Resistance	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post [custom]	Housing Material	Contact Material - Mating	Type	Type	Type	Features	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
TE Connectivity AMP Connectors 3-1571586-5	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.1 in	2.54 mm	Through Hole	Gold	0.63 µm	25 µin	Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	DIP	22.86 mm	0.9 in	Open Frame	Solder	0.1 "	2.54 mm	Gold	-55 C	105 ░C	2	64	32
TE Connectivity AMP Connectors 2-1571586-8	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.1 in	2.54 mm	Through Hole	Gold	0.63 µm	25 µin	Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	DIP			Open Frame	Solder	0.1 "	2.54 mm	Gold	-55 C	105 ░C	12	24	2	15.24 mm	0.6 in
TE Connectivity AMP Connectors 2-1571586-4	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.1 in	2.54 mm	Through Hole	Gold	0.63 µm	25 µin	Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	DIP	7.62 mm	0.3 in	Open Frame	Solder	0.1 "	2.54 mm	Gold	-55 C	105 ░C		16				2	8

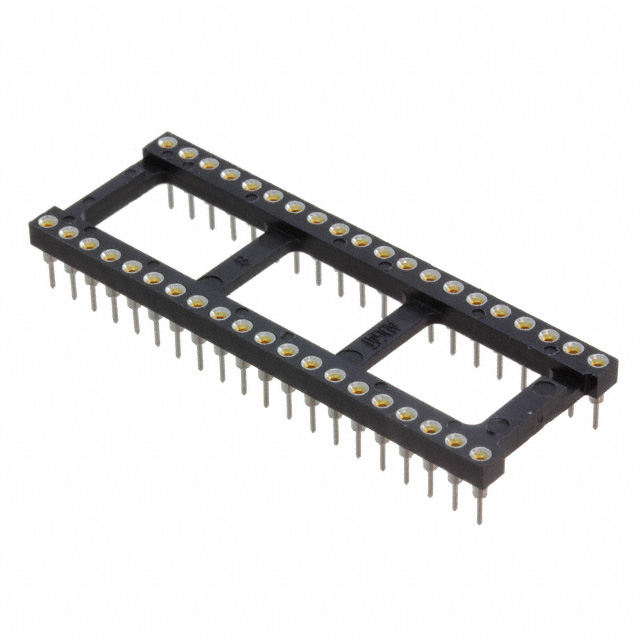

TE Connectivity AMP Connectors 3-1571586-2	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.1 in	2.54 mm	Through Hole	Gold	0.63 µm	25 µin	Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	DIP			Open Frame	Solder	0.1 "	2.54 mm	Gold	-55 C	105 ░C		40		15.24 mm	0.6 in
