110IMY15 Series

Catalog

DC DC CONVERTER 24V 24V 15W

Part	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Type	Package / Case	Efficiency	Mounting Type	Voltage - Output 2	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Bel Fuse Inc. 110IMY15-24-24-8G	ITE (Commercial) Railway	2	150 V	50 V	OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 9 Leads	85 %	Through Hole	24 V	350 mA	85 °C	-40 C	4.2 kV	15 W	24 V
Bel Fuse Inc. 110IMY15-05-8RGZ-G	ITE (Commercial) Railway	1	150 V	50 V	OCP OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 6 Leads	83 %	Through Hole			85 °C	-40 C	4.2 kV	15 W	5.1 V	2.5 A

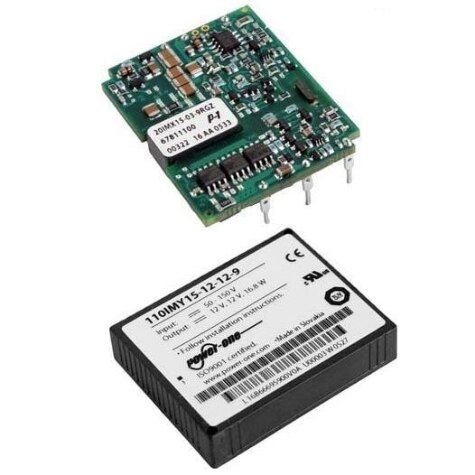

Bel Fuse Inc. 110IMY15-05-05-8	ITE (Commercial) Railway	2	150 V	50 V	OCP OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 9 Leads	86 %	Through Hole	5 V	1.4 A	85 °C	-40 C	4.2 kV	15 W	5 V
Bel Fuse Inc. 110IMY15-05-8R	ITE (Commercial) Railway	1	150 V	50 V	OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 6 Leads	83 %	Through Hole			85 °C	-40 C	4.2 kV	15 W	5.1 V	2.5 A
Bel Fuse Inc. 110IMY15-12-12-8ZG	ITE (Commercial) Railway	2	150 V	50 V	OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 9 Leads	87 %	Through Hole	12 V		85 °C	-40 C	4.2 kV	15 W	12 V	700 mA	700 mA
Bel Fuse Inc. 110IMY15-05-8RG	ITE (Commercial) Railway	1	150 V	50 V	OTP OVP SCP UVLO	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	Isolated Module Conformal Coated	17-DIP Module 6 Leads	83 %	Through Hole			85 °C	-40 C	4.2 kV	15 W	5.1 V	2.5 A
