EN3P13 Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 13 CONTACTS, PCB PIN, BAYONET

Part	Current Rating (Amps)	Applications	Termination	Voltage Rating	Fastening Type	Connector Type	Primary Material	Number of Positions	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shielding	Contact Finish - Mating	Material Flammability Rating	Mounting Feature	Color	Contact Material	Insert Material
SWITCHCRAFT/CONXALL EN3P13MRAPCBN	2 A	General Purpose Instrumentation Marine Medical	Circuit Board Solder	250 VAC	Bayonet Lock	Receptacle Male Pins	Plastic	13	IP66 IP68	Panel Mount Right Angle Through Hole	-40 C	65 °C	Keyed	Unshielded	Gold	UL94 V-0	Bulkhead - Front Side Nut	Black	Copper Alloy	Elastomer
SWITCHCRAFT/CONXALL EN3P13F26SX	3 A	General Purpose Instrumentation Marine Medical		250 VAC	Bayonet Lock	Receptacle Female Sockets	Plastic	13	IP66 IP68	Panel Mount	-40 C	65 °C	Keyed	Unshielded	Gold	UL94 V-0	Bulkhead - Front Side Nut	Black	Copper Alloy	Elastomer

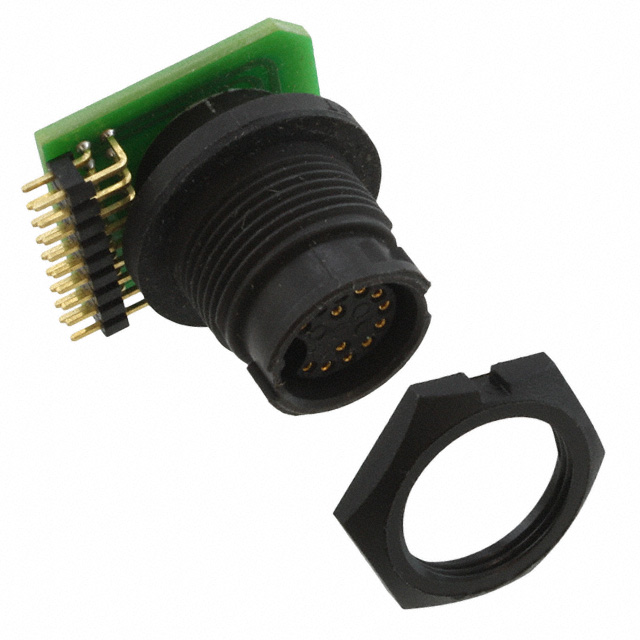

SWITCHCRAFT/CONXALL EN3P13FRAPCBN	2 A	General Purpose Instrumentation Marine Medical	Circuit Board Solder	250 VAC	Bayonet Lock	Receptacle Female Sockets	Plastic	13	IP66 IP68	Panel Mount Right Angle Through Hole	-40 C	65 °C	Keyed	Unshielded	Gold	UL94 V-0	Bulkhead - Front Side Nut	Black	Copper Alloy	Elastomer

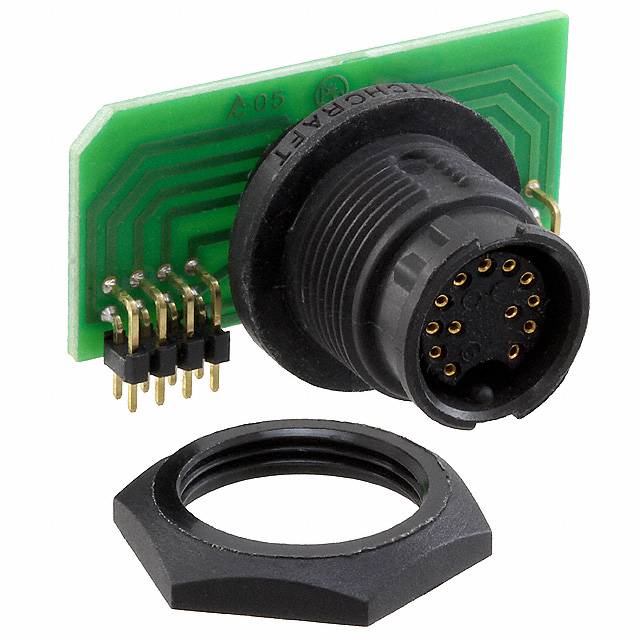

SWITCHCRAFT/CONXALL EN3P13FRAPCBW	2 A	General Purpose Instrumentation Marine Medical	Circuit Board Solder	250 VAC	Bayonet Lock	Receptacle Female Sockets	Plastic	13	IP66 IP68	Panel Mount Right Angle Through Hole	-40 C	65 °C	Keyed	Unshielded	Gold	UL94 V-0	Bulkhead - Front Side Nut	Black	Copper Alloy	Elastomer
