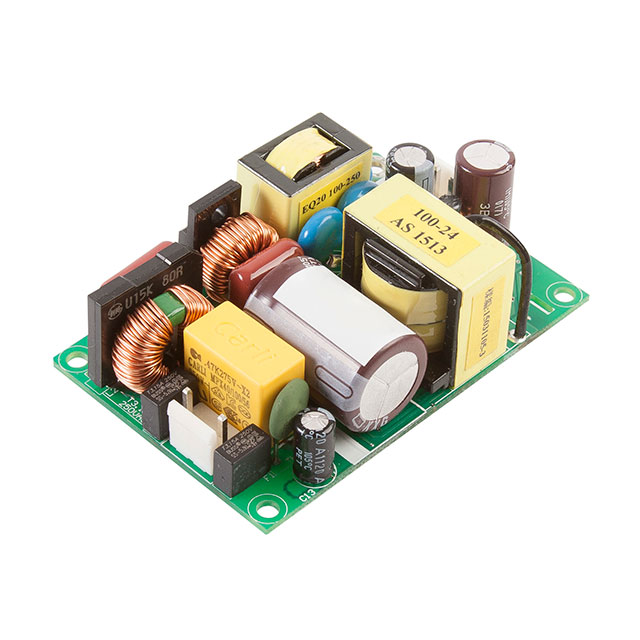

ECP130 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 130W @ 10CFM, 100 W
| Part | Minimum Load Required | Mounting Type | Approval Agency | Power (Watts) | Efficiency | Current - Output 1 | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Type | Voltage - Isolation | Standard Number | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Features | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Chassis Mount | CE | 100 W 130 W | 93 % | 6.66 A | 15 V | 70 °C | -20 °C | ITE (Commercial) Medical | Open Frame | 4000 V | 62368-1 | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1.1 in | 1 | PFC Standby Output Universal Input | ||
XP Power | Chassis Mount | CE | 100 W 130 W | 93 % | 4.16 A | 24 V | 70 °C | -20 °C | ITE (Commercial) Medical | Open Frame | 4000 V | 62368-1 | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1.1 in | 1 | PFC Standby Output Universal Input | ||
XP Power | Chassis Mount | CE | 100 W 130 W | 93 % | 2.77 A | 70 °C | -20 °C | ITE (Commercial) Medical | Open Frame | 4000 V | 62368-1 | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1.1 in | 1 | PFC Standby Output Universal Input | 36 V |
