VCS50 Series

Manufacturer: XP Power

Catalog

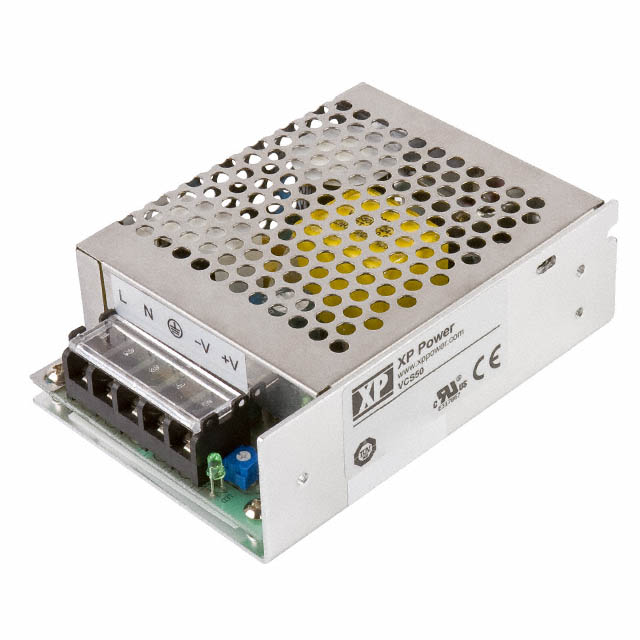

AC/DC CONVERTER 24V 50W

Part	Number of Outputs	Current - Output 1	Features	Voltage - Output 1	Standard Number	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Type	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications
XP Power VCS50US24	1	2.1 A	Adjustable Output DC Input Capable Universal Input	24 V	62368-1	Chassis Mount	4.35 "	1.38 in	35 mm	3.07 in	110.5 mm	78 mm	CB	Enclosed	88 %	50 W	70 °C	-25 °C	3000 V	ITE (Commercial)
XP Power VCS50US05	1	8 A	Adjustable Output DC Input Capable Universal Input	5 V	62368-1	Chassis Mount	4.35 "	1.38 in	35 mm	3.07 in	110.5 mm	78 mm	CB	Enclosed	79 %	50 W	70 °C	-25 °C	3000 V	ITE (Commercial)
XP Power VCS50US15	1	3.3 A	Adjustable Output DC Input Capable Universal Input	15 V	62368-1	Chassis Mount	4.35 "	1.38 in	35 mm	3.07 in	110.5 mm	78 mm	CB	Enclosed	86 %	50 W	70 °C	-25 °C	3000 V	ITE (Commercial)
XP Power VCS50US48	1	1.05 A	Adjustable Output DC Input Capable Universal Input	48 V	62368-1	Chassis Mount	4.35 "	1.38 in	35 mm	3.07 in	110.5 mm	78 mm	CB	Enclosed	88 %	50 W	70 °C	-25 °C	3000 V	ITE (Commercial)
