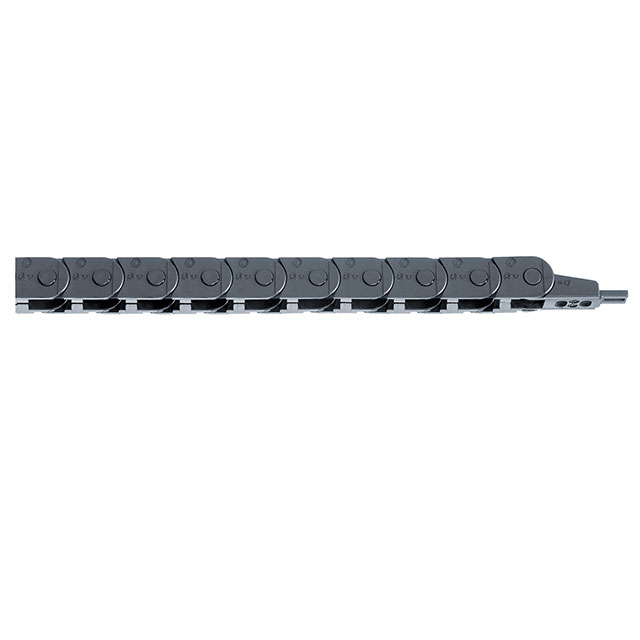

Z14-2 Series
Manufacturer: Igus
Beta
⌘K
CABLE CARRIER .98H X 1.46W 1=1FT
| Part | Cavity Height | Cavity Height [z] | Outer Width [y] | Outer Width [y] | Loading Side | Minimum Bend Radius [Min] | Minimum Bend Radius [Min] [radius] | Operating Temperature [Max] | Operating Temperature [Min] | Frame Type | Outer Height [z] | Outer Height [z] | Cavity Width | Cavity Width | Material | Link Pitch | Link Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Igus | 19.05 mm | 0.75 in | 1.46 in | 37.08 mm | Inside and Outside Bend | 27.94 mm | 1.1 " | 80 °C | -40 C | Open | 0.98 in | 24.89 mm | 24.89 mm | 0.98 in | Igumid G | 1.2 in | 30.48 mm |
