ACJ2112 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

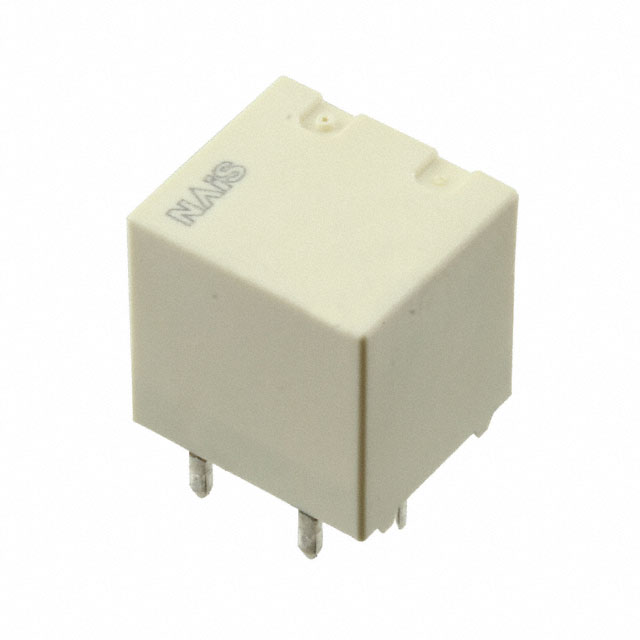

RELAY AUTOMOTIVE SPDTX2 20A 12V
| Part | Coil Resistance | Coil Power | Contact Material | Coil Current | Must Operate Voltage | Contact Rating (Current) | Release Time | Contact Form | Coil Type | Must Release Voltage | Coil Voltage | Termination Style | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 180 Ohms | 800 mW | Silver Alloy Cadmium Free | 66.7 mA | 6.5 VDC | 20 A | 10 ms | SPDT (1 Form C) x 2 | Non Latching | 0.8 VDC | 12 VDC | PC Pin | 10 ms | 85 °C | -40 C | Sealed - Flux Protection | Through Hole | 14 VDC |
