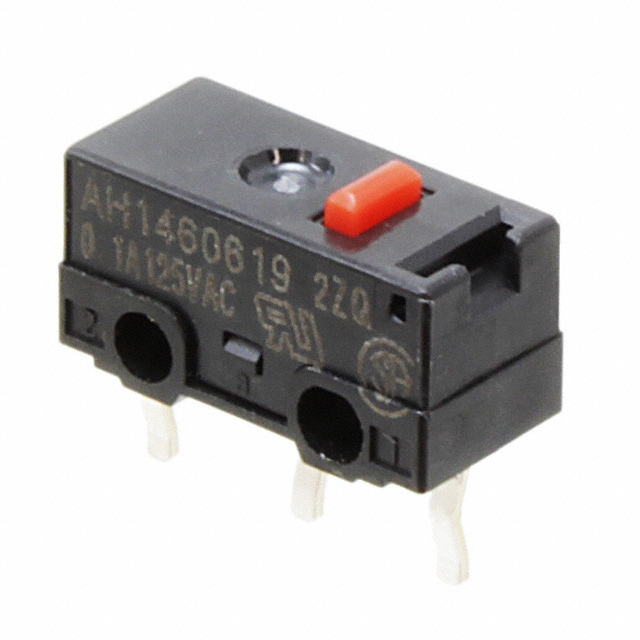

AH1460619 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Switch Function | Circuit | Operating Position | Operating Position | Electrical Life | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Operating Force | Termination Style | Mounting Type | Mechanical Life | Differential Travel | Differential Travel | Release Force | Pretravel | Pretravel | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | On-Mom | SPDT | 0.217 in | 5.5 mm | 100000 Cycles | 100 mA | 0.01 " | 0.25 mm | Round (Pin Plunger) | 85 °C | -25 °C | 30 V | 150 gf | PC Pin | Through Hole | 500000 Cycles | 0.005 in | 0.13 mm | 20 gf | 0.02 in | 0.5 mm | 125 V |
