950536 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

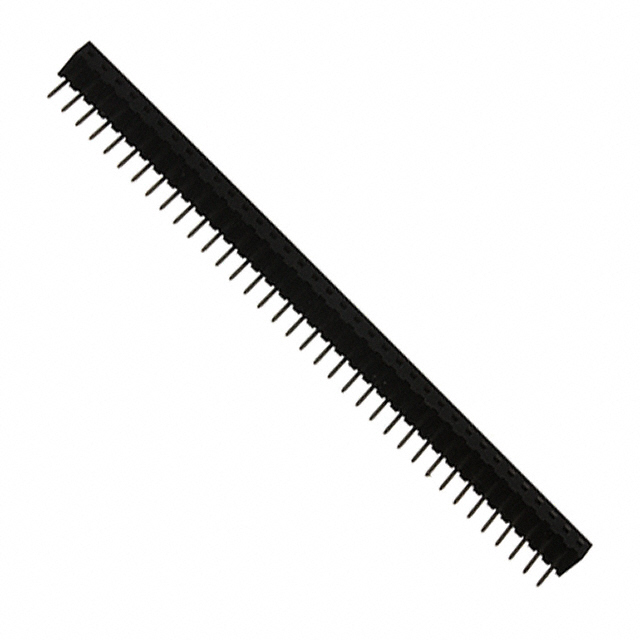

CONN RCPT 36P 0.079 GOLD PCB R/A
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Contact Material | Contact Finish Thickness - Mating | Contact Type | Insulation Color | Number of Positions | Pitch - Mating | Pitch - Mating | Connector Type | Termination | Contact Finish - Post | Material Flammability Rating | Fastening Type | Mounting Type | Voltage Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 40 Áin | 1.02 Ám | Square | Thermoplastic | Copper Alloy | Flash | Female Socket | Black | 36 | 0.079 " | 2 mm | Receptacle | Solder | Tin | UL94 V-0 | Push-Pull | Right Angle Through Hole | 1000 VDC | Gold | -40 C | 105 ░C | 1 | All | 0.118 in | 3 mm |
