DC12.3202 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Ingress Protection	Termination	Termination	Termination	Current Rating - Appliance Inlet	Switch Features	Connector Style	Mounting Type	Voltage Rating - Appliance Inlet	Material Flammability Rating	Approval Agency	Current Rating - Filter	Connector Type	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Number of Positions	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]

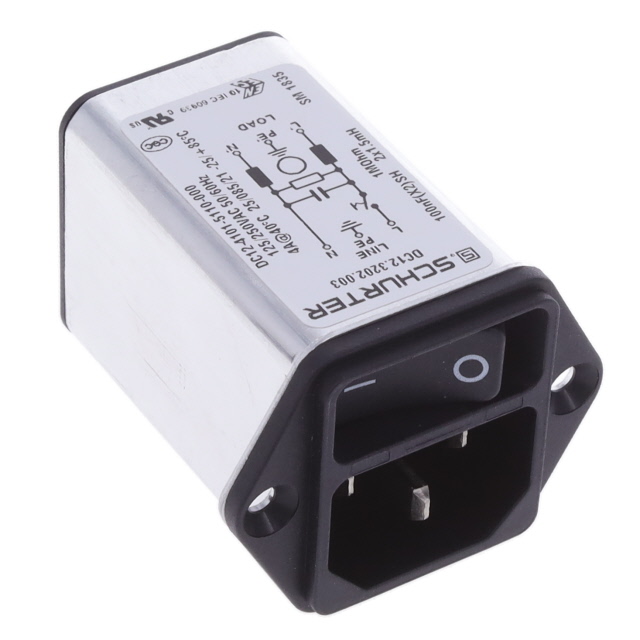

SCHURTER Inc. DC12.3202.003	IP40	6.3 mm	Quick Connect	0.25 "	10 A	Switch On-Off	IEC 320-C14	Flange Panel Mount	250 VAC	UL94 V-0	CQC cULus ENEC	4 A	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	33.1 mm	29.1 mm	Shielded V-Lock Notch
SCHURTER Inc. DC12.3202.131	IP40	6.3 mm	Quick Connect	0.25 "	10 A	Switch On-Off	IEC 320-C18	Panel Mount Snap-In	250 VAC	UL94 V-0	CQC cULus ENEC	4 A	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	33.1 mm	29.4 mm	Shielded V-Lock Notch	2	0.118 in	3 mm	1 mm	0.039 in
SCHURTER Inc. DC12.3202.021	IP40	6.3 mm	Quick Connect	0.25 "	10 A	Switch On-Off	IEC 320-C18	Flange Panel Mount	250 VAC	UL94 V-0	CQC cULus ENEC	4 A	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	33.1 mm	29.1 mm	Shielded V-Lock Notch	2
SCHURTER Inc. DC12.3202.121	IP40	6.3 mm	Quick Connect	0.25 "	10 A	Switch On-Off	IEC 320-C18	Panel Mount Snap-In	250 VAC	UL94 V-0	CQC cULus ENEC	4 A	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	33.1 mm	29.4 mm	Shielded V-Lock Notch	2	0.118 in	3 mm	1 mm	0.039 in
SCHURTER Inc. DC12.3202.101	IP40	6.3 mm	Quick Connect	0.25 "	10 A	Switch On-Off	IEC 320-C14	Panel Mount Snap-In	250 VAC	UL94 V-0	CQC cULus ENEC	4 A	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	33.1 mm	29.4 mm	Shielded V-Lock Notch		0.118 in	3 mm	1 mm	0.039 in
