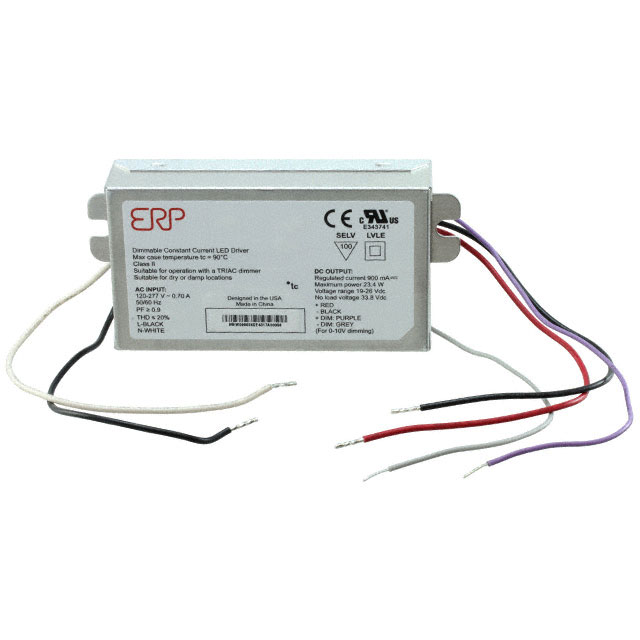

ESM030W Series

Catalog

LED DRIVER CC AC/DC 120-277V 700

Part	Mounting Type	Ratings	Voltage - Input (Min) [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Type	Termination Style	Number of Outputs	Operating Temperature	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Voltage - Input (Max) [Max]	Dimming	Topology	Weight [custom]	Weight [custom]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
ERP Power, LLC ESM030W-0700-42-Z1	Chassis Mount	IP20	120 VAC	42 V	24 V	29 W	700 mA	87 %	Constant Current	Wire Leads	1	194 °F	106.4 mm	0.99 "	4.19 in	25.1 mm	2.37 in	60.2 mm	OCP OTP SCP	277 VAC	Analog ELV TRIAC	AC DC Converter
ERP Power, LLC ESM030W-0900-26	Chassis Mount	IP20 NEMA 410	120 VAC	26 V	19 V	23 Watts	900 mA	87 %	Constant Current	Wire Leads	1		106.7 mm	0.99 "	4.2 "	25.2 mm	2.37 in	60.3 mm	OCP OTP SCP	277 VAC	ELV TRIAC	AC DC Converter	252 g	0.556 lb	CB CE cRUcs cUL FC UL	-30 ░C	90 °C
ERP Power, LLC ESM030W-0700-42	Chassis Mount	IP20 NEMA 410	120 VAC	42 V	28 V	29 W	700 mA	87 %	Constant Current	Wire Leads	1		106.7 mm	0.99 "	4.2 "	25.2 mm	2.37 in	60.3 mm	OCP OTP SCP	277 VAC	ELV TRIAC	AC DC Converter	252 g	0.556 lb	CB CE cRUcs cUL FC UL	-30 ░C	90 °C

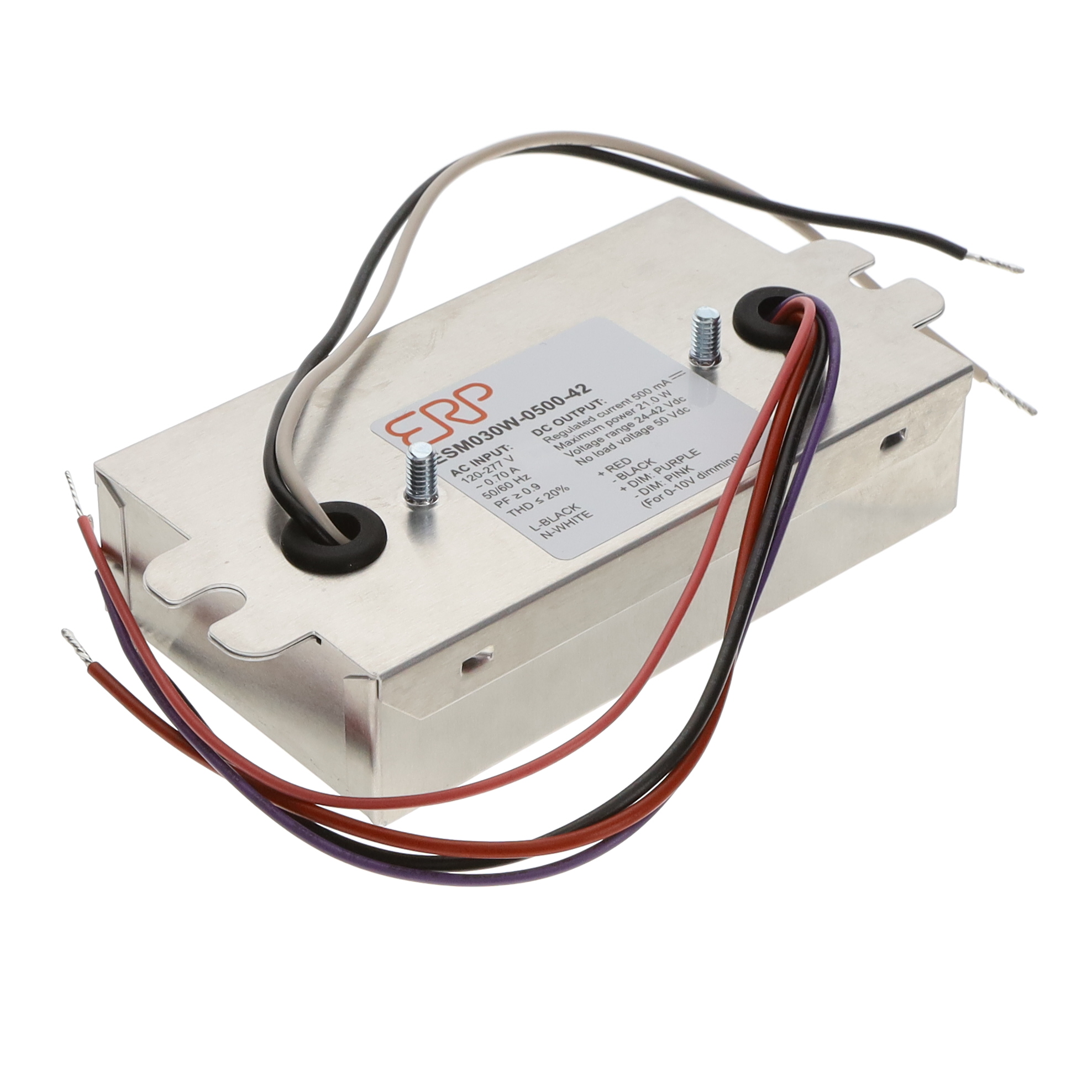

ERP Power, LLC ESM030W-0500-42	Chassis Mount	IP20 NEMA 410	120 VAC	42 V	28 V	21 W	500 mA	87 %	Constant Current	Wire Leads	1		106.7 mm	0.99 "	4.2 "	25.2 mm	2.37 in	60.3 mm	OCP OTP SCP	277 VAC	ELV TRIAC	AC DC Converter	252 g	0.556 lb	CB CE cRUcs cUL FC UL	-30 ░C	90 °C

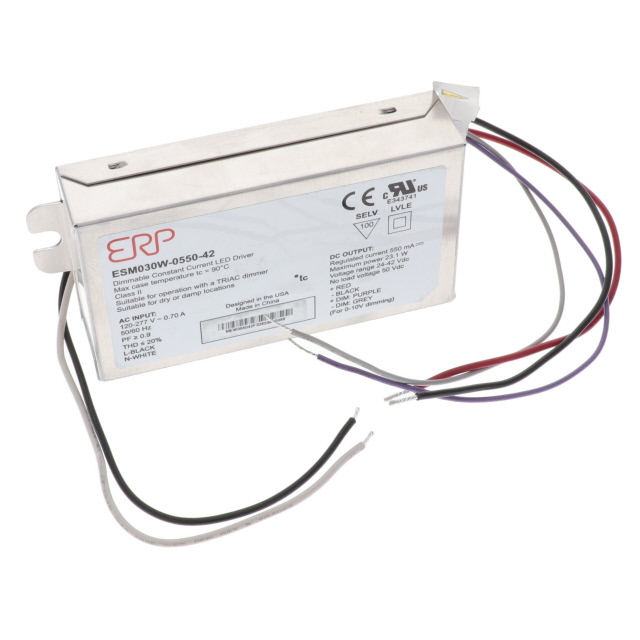

ERP Power, LLC ESM030W-0550-42	Chassis Mount	IP20 NEMA 410	120 VAC	42 V	28 V	23 Watts	550 mA	87 %	Constant Current	Wire Leads	1		106.7 mm	0.99 "	4.2 "	25.2 mm	2.37 in	60.3 mm	OCP OTP SCP	277 VAC	ELV TRIAC	AC DC Converter	252 g	0.556 lb	CB CE cRUcs cUL FC UL	-30 ░C	90 °C
ERP Power, LLC ESM030W-1750-14	Chassis Mount	IP20 IP64 NEMA 410	120 VAC	14 V	8 V	13 W	1.75 A	87 %	Constant Current	Wire Leads	1		106.7 mm	0.99 "	4.2 "	25.2 mm	2.37 in	60.3 mm	OCP OTP SCP	277 VAC	ELV TRIAC	AC DC Converter	252 g	0.556 lb	CB CE cRUcs cUL FC UL	-30 ░C	90 °C
