430764 Series

Catalog

PELTIER UT15,12,F2,4040,TA,RT,W6

Part	Current - Max [Max]	Resistance	Delta Tmax @ Th	Number of Stages	Operating Temperature	Features	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Height [z]	Qmax @ Th

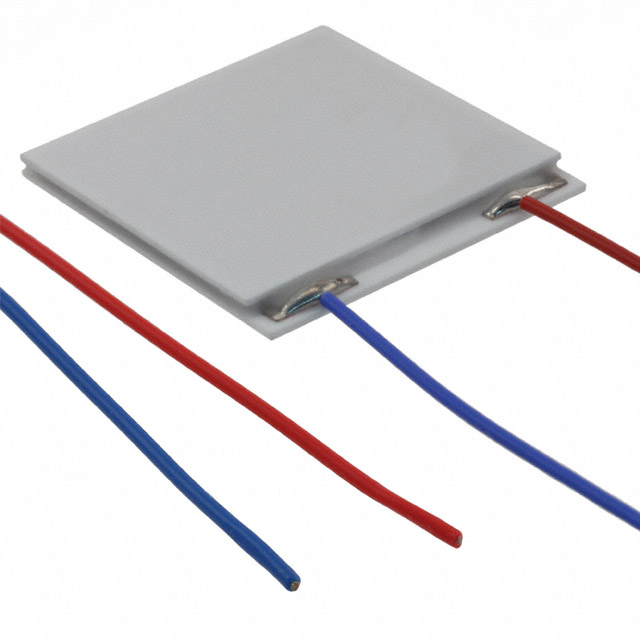

Laird Thermal Systems, Inc. 430764-507	14.7 A	910 mOhms	67 °C	1	80 °C	Lead Wires Sealed - Silicone RTV	39.9 mm	43.9 mm	14.5 V	2.84 mm
Laird Thermal Systems, Inc. 430764-519	14.4 A	880 mOhms	69 °C	1	80 °C	Lapped Lead Wires	39.9 mm	43.9 mm	13.6 V	2.85 mm	117.1 W

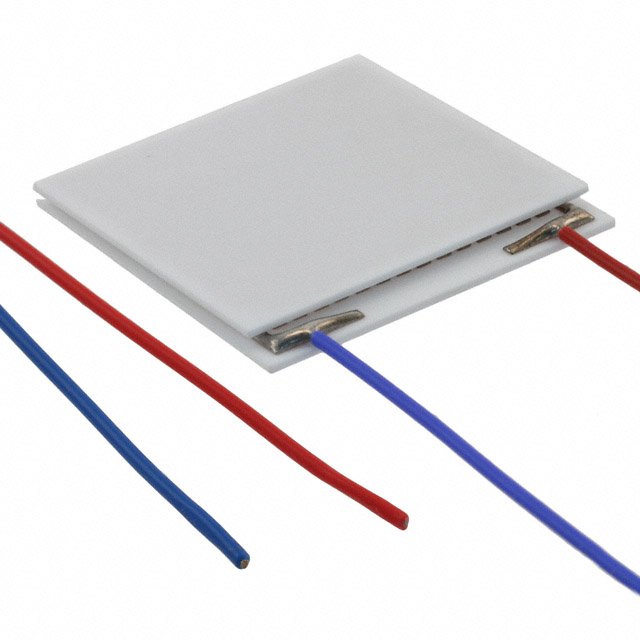

Laird Thermal Systems, Inc. 430764-505	14.7 A	910 mOhms	67 °C	1	80 °C	Lead Wires Non-Sealed	39.9 mm	43.9 mm	14.5 V	2.84 mm
