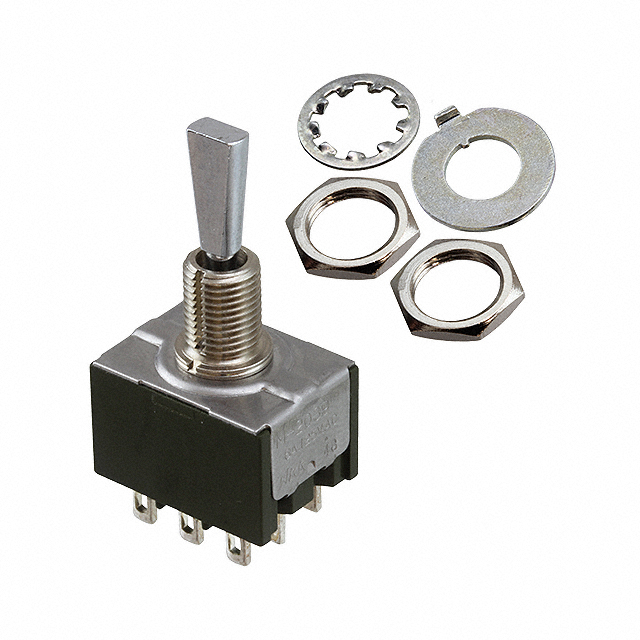

M2039ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 3PDT 6A 125V
| Part | Electrical Life | Actuator Material | Termination Style | Illumination | Circuit | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Voltage Rating - DC | Features | Actuator Length [x] | Bushing Thread | Panel Cutout Dimensions [diameter] | Mounting Type | Current Rating (Amps) | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Solder Lug | Non-Illuminated | 3PDT | Flatted | 85 °C | -30 ░C | 125 V | 30 V | Epoxy Sealed Terminals | 11.4 mm | 1/4-40 | 6.5 mm | Panel Mount | 3 A 6 A | On-Off-Mom |
