225CTV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Illumination	Actuator Orientation	Actuator Type	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Force	Termination Style	Ingress Protection	Outline [y]	Outline [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function

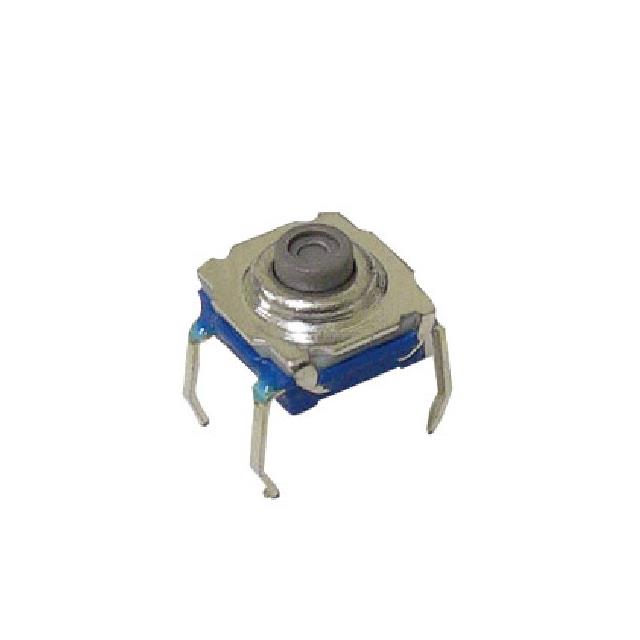

CTS Electrocomponents 225CTVABT	0.5 mm	100000 Cycles	Non-Illuminated	Top Actuated	Standard	0.05 A 12 VDC	4.7 mm	300 gf	PC Pin	IP67 - Dust Tight Waterproof	7.2 mm	7.2 mm	Through Hole	-20 ░C	70 °C	SPST-NO	Off-Mom
CTS Electrocomponents 225CTVCBT	0.5 mm	100000 Cycles	Non-Illuminated	Top Actuated	Standard	0.05 A 12 VDC	10 mm	300 gf	PC Pin	IP67 - Dust Tight Waterproof	7.2 mm	7.2 mm	Through Hole	-20 ░C	70 °C	SPST-NO	Off-Mom
CTS Electrocomponents 225CTVAAT	0.5 mm	100000 Cycles	Non-Illuminated	Top Actuated	Standard	0.05 A 12 VDC	4.7 mm	130 gf	PC Pin	IP67 - Dust Tight Waterproof	7.2 mm	7.2 mm	Through Hole	-20 ░C	70 °C	SPST-NO	Off-Mom
CTS Electrocomponents 225CTVBBT	0.5 mm	100000 Cycles	Non-Illuminated	Top Actuated	Standard	0.05 A 12 VDC	7 mm	300 gf	PC Pin	IP67 - Dust Tight Waterproof	7.2 mm	7.2 mm	Through Hole	-20 ░C	70 °C	SPST-NO	Off-Mom
