ALC80D Series

Manufacturer: KEMET

Catalog

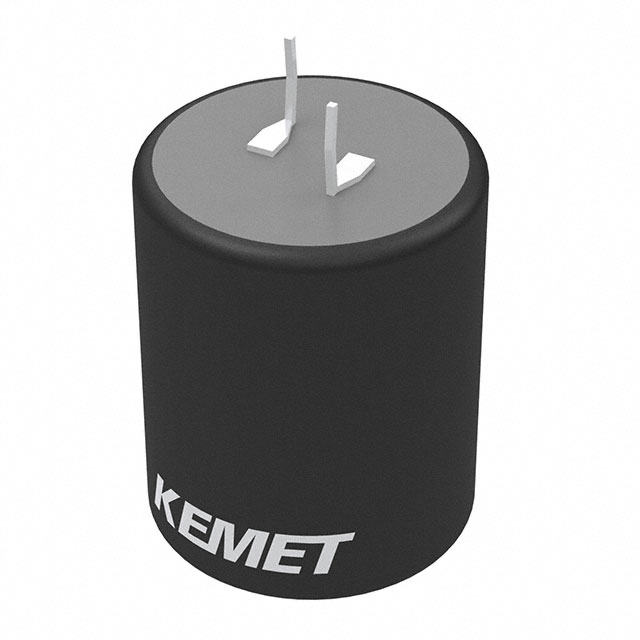

CAP ALUMINUM LYTIC 430UF 350V 20% (35 X 40MM) SNAP-IN 10MM 0.319 OHM 2.3A 8000H 105°C BAG

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Applications	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Impedance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Polarization	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET ALC80D431DD350	430 µF	-40 C	105 ░C	8000 Hrs	General Purpose	350 V	319 mOhm	Through Hole	20 %	0.394 in	10 mm	168 mOhms	2.3 A	1.378 "	35 mm	6.05 A	Polar	Radial Can - Snap-In	42 mm	1.654 in
KEMET ALC80D162CB100	1600 µF	-40 C	105 ░C	7000 Hrs	General Purpose	100 V	175 mOhm	Through Hole	20 %	0.394 in	10 mm	142 mOhms	3.54 A	1.181 "		5.4 A	Polar	Radial Can - Snap-In	32 mm	1.26 in	30 mm
KEMET ALC80D911EH400	910 µF	-40 C	105 ░C	9000 Hrs	General Purpose	400 V	142 mOhm	Through Hole	20 %	0.394 in	10 mm	75 mOhms	4.04 A	1.575 in	40 mm	9.48 A	Polar	Radial Can - Snap-In				62 mm	2.441 in
KEMET ALC80D131CB450	130 µF	-40 C	105 ░C	7000 Hrs	General Purpose	450 V	987 mOhm	Through Hole	20 %	0.394 in	10 mm	564 mOhms	1.17 A	1.181 "		3.57 A	Polar	Radial Can - Snap-In	32 mm	1.26 in	30 mm
KEMET ALC80D241DC450	240 µF	-40 C	105 ░C	8000 Hrs	General Purpose	450 V	541 mOhm	Through Hole	20 %	0.394 in	10 mm	311 mOhms	1.81 A	1.378 "	35 mm	5.09 A	Polar	Radial Can - Snap-In		1.457 in		37 mm
KEMET ALC80D392BB040	3900 µF	-40 C	105 ░C	6000 Hrs	General Purpose	40 V	134 mOhm	Through Hole	20 %	0.394 in	10 mm	108 mOhms	3.26 A	0.984 "	25 mm	4.52 A	Polar	Radial Can - Snap-In	32 mm	1.26 in
KEMET ALC80D162BD100	1600 µF	-40 C	105 ░C	6000 Hrs	General Purpose	100 V	184 mOhm	Through Hole	20 %	0.394 in	10 mm	151 mOhms	3.16 A	0.984 "	25 mm	4.45 A	Polar	Radial Can - Snap-In	42 mm	1.654 in
KEMET ALC80D131BD450	130 µF	-40 C	105 ░C	6000 Hrs	General Purpose	450 V	995 mOhm	Through Hole	20 %	0.394 in	10 mm	571 mOhms	1.11 A	0.984 "	25 mm	3.23 A	Polar	Radial Can - Snap-In	42 mm	1.654 in
KEMET ALC80D561CD250	560 µF	-40 C	105 ░C	7000 Hrs	General Purpose	250 V	311 mOhm	Through Hole	20 %	0.394 in	10 mm	182 mOhms	2.28 A	1.181 "		5.43 A	Polar	Radial Can - Snap-In	42 mm	1.654 in	30 mm
KEMET ALC80D103CD040	10000 µF	-40 C	105 ░C	7000 Hrs	General Purpose	40 V	51 mOhm	Through Hole	20 %	0.394 in	10 mm	41 mOhms	6.51 A	1.181 "		9.23 A	Polar	Radial Can - Snap-In	42 mm	1.654 in	30 mm
