6035-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

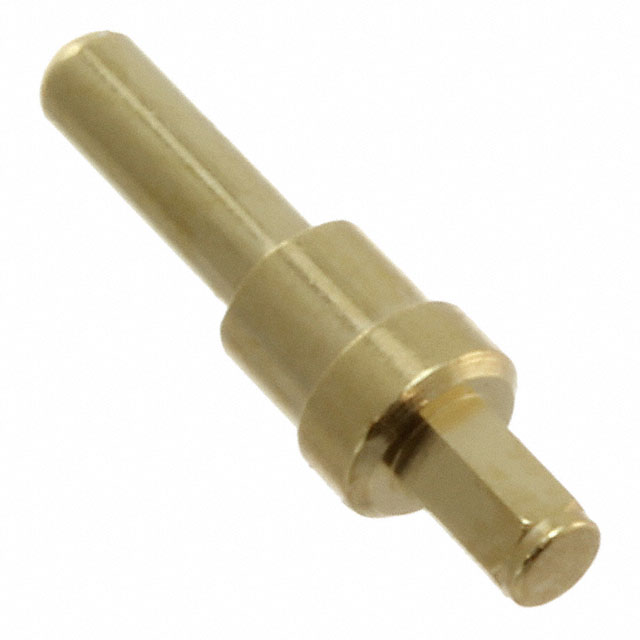

CONN PC PIN 0.062DIA GOLD
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Insulation | Pin Size - Below Flange | Pin Size - Below Flange | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 4.78 mm | 0.188 in | 0.113 in | 2.87 mm | Press-Fit | 0.062 in | 1.57 mm | Gold | Brass Alloy | 1.73 mm | 0.068 " | 10.64 mm | 0.419 in | Flanged Pin Retention | 0.25 Ám | 10 Áin | 2.54 mm | 0.1 " | Through Hole | Non-Insulated | 1.7 mm | 0.067 in | PC Pin |
