R-NL Series
Manufacturer: iNRCORE
Beta
⌘K
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Transformer Type | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|

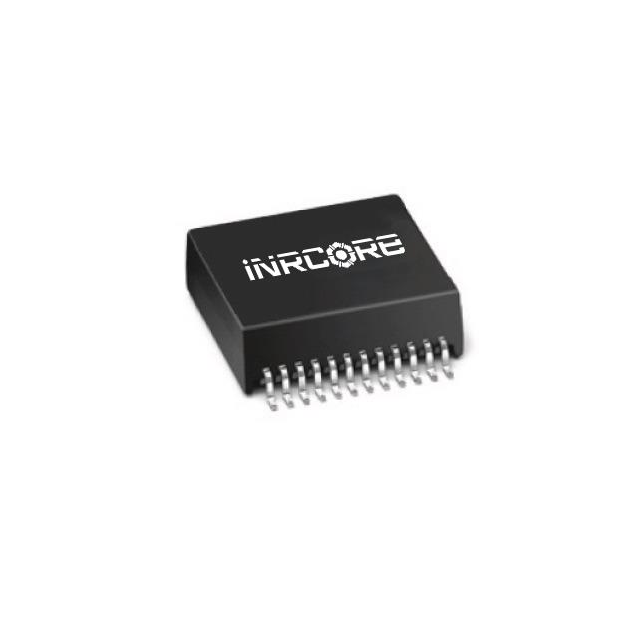

 iNRCORE | 6.12 mm | 0.241 " | Surface Mount | 0.518 " 13.16 mm | 0.595 in 15.11 mm | LAN 10/100 Base-T | 350 µH | 85 °C | -40 C | ||

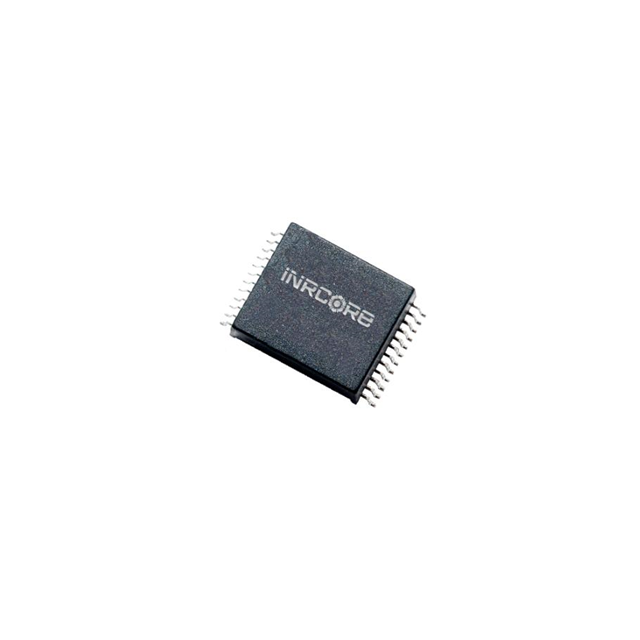

 iNRCORE | 8.64 mm | 0.34 in | Surface Mount | 0.43 in | 0.6 " | LAN 1000 Base-T | 350 µH | 85 °C | -40 C | 15.24 mm | 10.92 mm |
