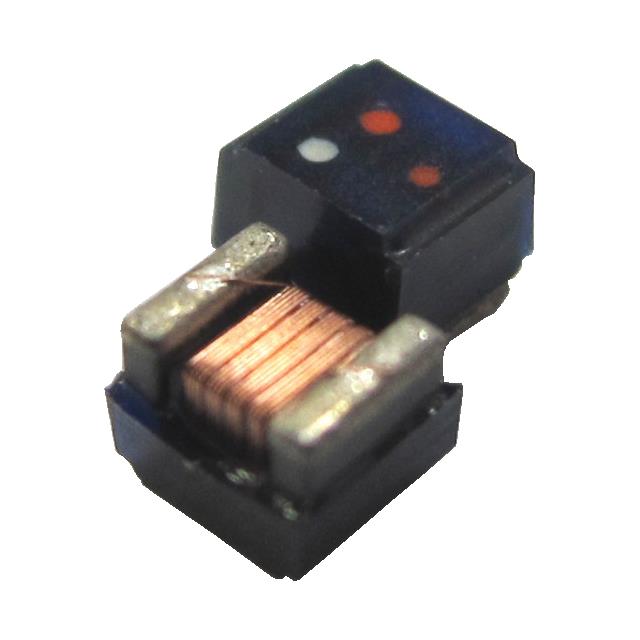

BWNL Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR WIRE WOUND-STD

Part	Tolerance	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]	Mounting Type	Inductance Frequency - Test	Package / Case	Inductance	Material - Core	Shielding	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Q @ Freq	Package / Case	Supplier Device Package	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics BWNL00292522R15K00	10 %	900 mA	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in	30	25.2 MHz	350 mOhm	Surface Mount	25.2 MHz	Nonstandard	150 nH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	550 MHz
Pulse Electronics BWNL00292522150J00	5 %	430 mA	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in			4.4 Ohm	Surface Mount	2.52 MHz	Nonstandard	15 µH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	26 MHz	2.52 MHz 15
Pulse Electronics BWNL00292522R15J00	5 %	900 mA	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in	30	25.2 MHz	350 mOhm	Surface Mount	25.2 MHz	Nonstandard	150 nH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	550 MHz
Pulse Electronics BWNL0029282233NK00	10 %	1.4 A	105 ░C	-25 °C	2.92 mm	2.79 mm	0.115 "	0.11 "				Surface Mount	100 MHz	1008	33 nH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	1.6 GHz	30 100 MHz	2520 Metric	1008	420 mOhm
Pulse Electronics BWNL00241715R47J00	5 %	470 mA	105 ░C	-25 °C	0.094 in	0.068 in	2.4 mm	1.72 mm	25	25.2 MHz		Surface Mount	25.2 MHz	0805	470 nH	Ferrite	Unshielded	Drum Core Wirewound			170 MHz			0805	550 mOhm	1.52 mm	0.06 in
Pulse Electronics BWNL00292522680K00	10 %	0.25 A	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in	10	2.52 MHz	16.6 Ohm	Surface Mount	2.52 MHz	Nonstandard	68 µH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	15 MHz
Pulse Electronics BWNL00292522120J00	5 %	0.55 A	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in			3.8 Ohm	Surface Mount	2.52 MHz	Nonstandard	12 µH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	30 MHz	2.52 MHz 15
Pulse Electronics BWNL00292522100J00	5 %	600 mA	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in			3.5 Ohm	Surface Mount	2.52 MHz	Nonstandard	10 µH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	33 MHz	2.52 MHz 15
Pulse Electronics BWNL002925223R9K00	10 %	700 mA	105 ░C	-25 °C	2.92 mm	2.5 mm	0.115 "	0.098 in			2.1 Ohm	Surface Mount	7.96 MHz	Nonstandard	3.9 µH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	48 MHz	7.96 MHz 25
Pulse Electronics BWNL0029282212NJ00	5 %	1.7 A	105 ░C	-25 °C	2.92 mm	2.79 mm	0.115 "	0.11 "				Surface Mount	100 MHz	1008	12 nH	Ferrite	Unshielded	Drum Core Wirewound	0.087 in	2.2 mm	2.4 GHz		2520 Metric	1008	260 mOhm
