1012-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

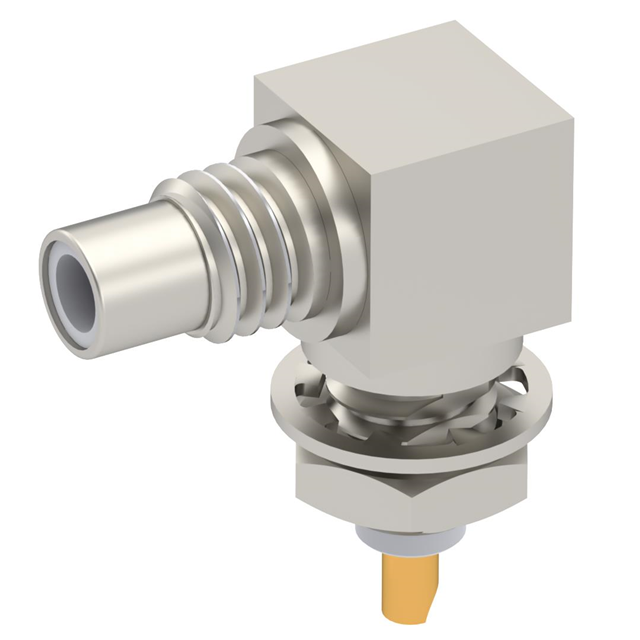

SMC M RA BHD SP
| Part | Dielectric Material | Includes | Insertion Loss | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Body Material | Frequency - Max [Max] | Mounting Type | Number of Ports | Mounting Feature | Impedance | Connector Style | Shield Termination | Contact Termination | Fastening Type | Center Contact Material | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 0.5 dB | Gold | -65 ░C | 165 °C | 500 | Nickel | Brass | 10 GHz | Panel Mount Right Angle | 1 | Bulkhead - Rear Side Nut | 50 Ohms | SMC | Solder | Solder Cup | Threaded | Brass | Jack Male Pin | Silver |
