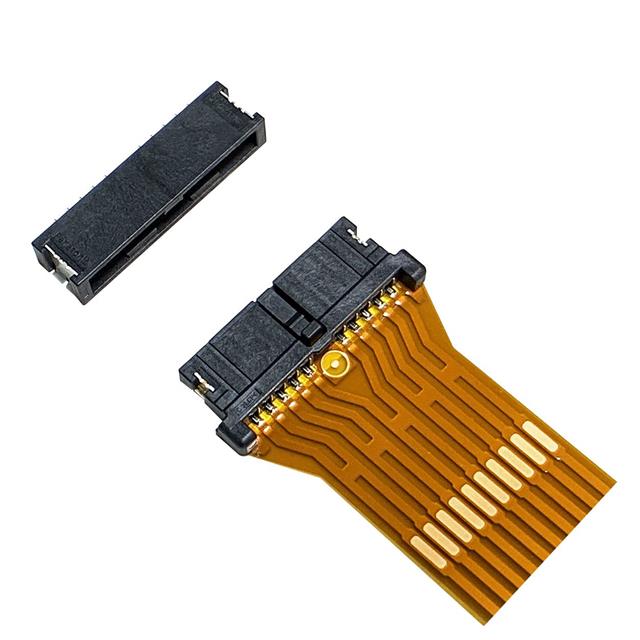

CF1 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
AUTOMOTIVE CONNECTORS 2A 50VDC 1000VAC 10 PIN HEADER
| Part | Housing Color | Mating Cycles | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Features | Housing Material | Height Above Board [z] | Height Above Board [z] | Termination | Contact Finish | Flat Flex Type | Contact Material | Voltage Rating | Number of Positions | Connector/Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Black | 10 | 2 A | UL94 V-0 | 125 °C | -40 C | 2.2 mm | 0.087 in | Solder Retention | Liquid Crystal Polymer (LCP) | 5.2 mm | 0.205 in | Solder | Tin | FPC | Copper Alloy | 50 V | 10 | Contacts Top and Bottom | Right Angle Surface Mount |
