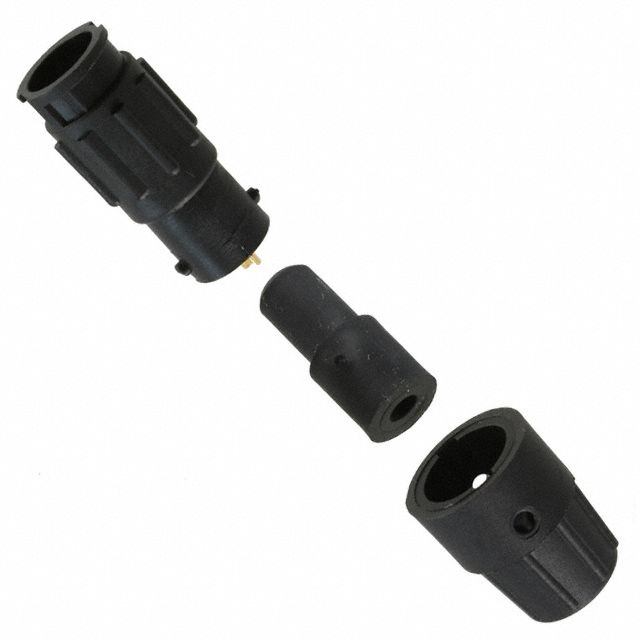

18282-2P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MICRO-CON CABLE-CABLE #20 SOLDER
| Part | Fastening Type | Backshell Material, Plating | Connector Type | Shielding | Color | Features | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Mounting Type | Voltage Rating | Material Flammability Rating | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Orientation | Contact Material | Number of Positions | Contact Finish - Mating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Bayonet Lock | Thermoplastic | Receptacle Male Pins | Unshielded | Black | Backshell | Data Industrial Instrumentation Medical | 85 °C | -40 C | 7.5 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | 600 VAC | UL94 HB | 3.81 mm | 0.15 " | 4.32 mm | 0.17 in | Keyed | Copper Alloy | 2 | Gold | Plastic |
