QB0302 Series

Catalog

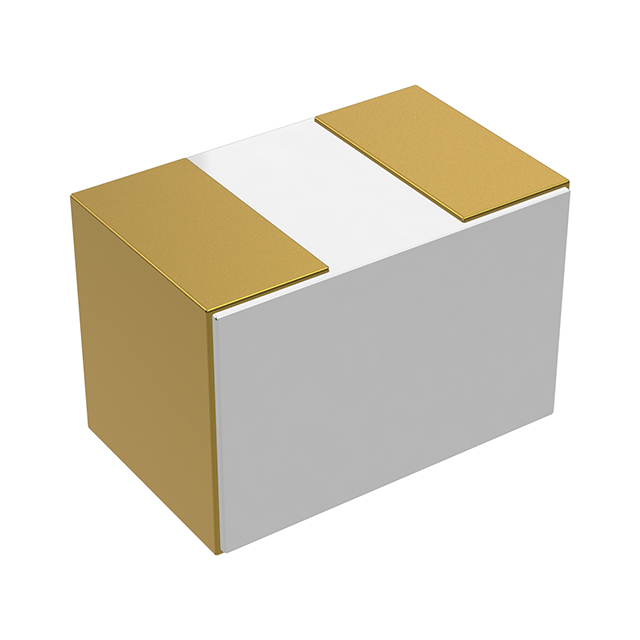

THERMAL CONDUCTOR Q-BRIDGE

Part	Thermal Conductivity [Max]	Thermal Conductivity [Min]	Usage	Thickness	Thickness	Outline [x]	Outline [y]	Shape	Thermal Resistivity	Material	Type
KYOCERA AVX QB0302B20EST	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Beryllium Oxide	Thermal Bridge Jumper
KYOCERA AVX QB0302B20ESC	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Beryllium Oxide	Thermal Bridge Jumper
KYOCERA AVX QB0302B20WYS	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Beryllium Oxide	Thermal Bridge Jumper
KYOCERA AVX QB0302A20ESS	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
KYOCERA AVX QB0302A20EST	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
KYOCERA AVX QB0302A20WYC	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
KYOCERA AVX QB0302B20EST\500	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Beryllium Oxide	Thermal Bridge Jumper
KYOCERA AVX QB0302A20EST\500	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
KYOCERA AVX QB0302A20WYT\500	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
KYOCERA AVX QB0302A20ESC	81 W/m-K	53 W/m-K	Heat Transfer	0.002 in	0.051 mm	0.77 mm	0.51 mm	Rectangular	12 °C/W 19 °C/W	Aluminum Nitride	Thermal Bridge Jumper
