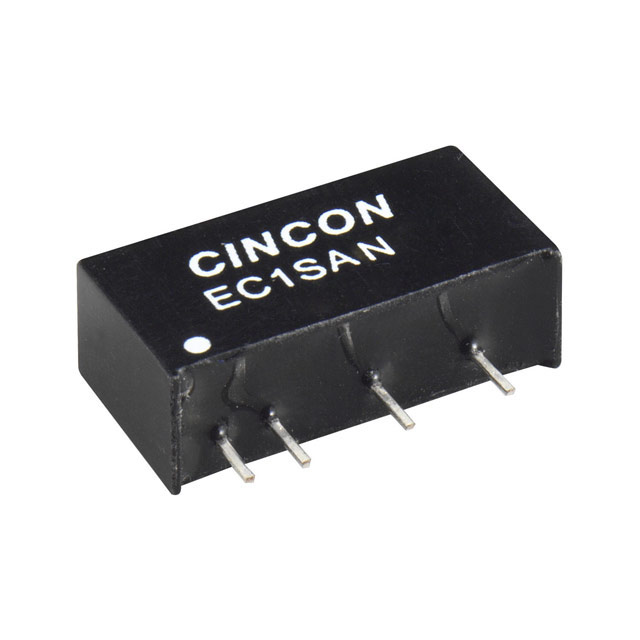

EC1SA Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 1 WATT, UNREGULATED OUTPUT, 12VDC INPUT, 15VDC OUTPUT, 67MA, 81% EFFICIENCY, 220UF, SIP

Part	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Applications	Voltage - Isolation	Features	Number of Outputs	Approval Agency	Voltage - Output 1	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Min]	Current - Output (Max)	Current - Output (Max)

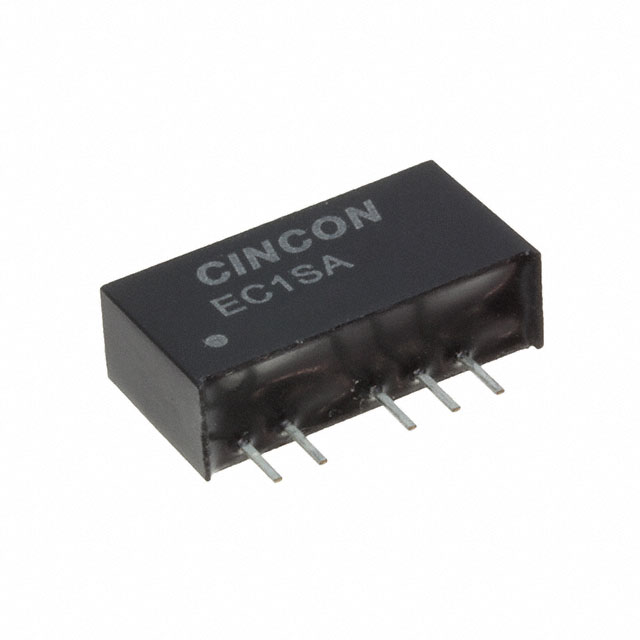

Cincon Electronics Co. LTD EC1SA13N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	81 %	ITE (Commercial)	1.5 kV	SCP	1	CE	15 V	Through Hole	7-SIP Module 5 Leads	10.8 V	67 mA	13.2 V	85 °C	-40 C

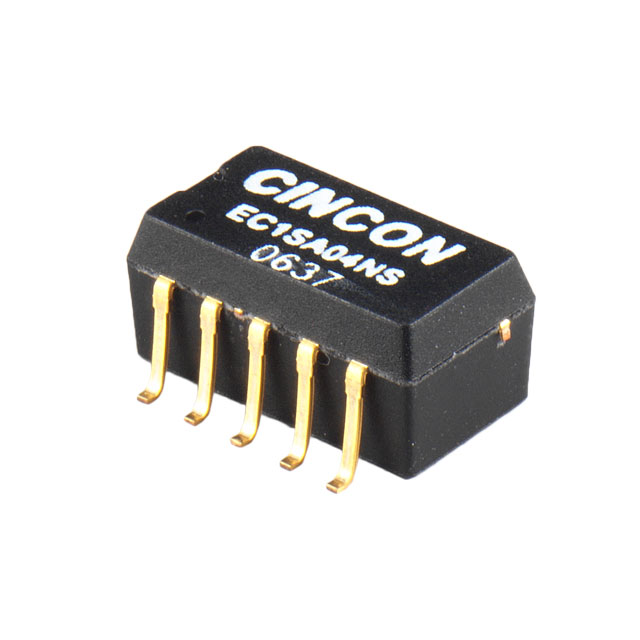

Cincon Electronics Co. LTD EC1SA04NS	Isolated Module	0.3 in			16.2 mm	0.36 in	0.64 "	78 %	ITE (Commercial)	1.5 kV	SCP	2	CE	12 V	Surface Mount	10-SMD Module 6 Leads	4.5 V		5.5 V	85 °C	-40 C	7.4 mm	9.2 mm	-12 V	42 mA
Cincon Electronics Co. LTD EC1SA25N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in		ITE (Commercial)	1.5 kV	SCP	2	CE	15 V	Through Hole	7-SIP Module 5 Leads	21.6 V	33 mA	26.4 V	85 °C	-40 C			-15 V		33 mA
Cincon Electronics Co. LTD EC1SA14N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	80 %	ITE (Commercial)	1.5 kV	SCP	2	CE	12 V	Through Hole	7-SIP Module 5 Leads	10.8 V		13.2 V	85 °C	-40 C			-12 V	42 mA
Cincon Electronics Co. LTD EC1SA23N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	81 %	ITE (Commercial)	1.5 kV	SCP	1	CE	15 V	Through Hole	7-SIP Module 5 Leads	21.6 V	67 mA	26.4 V	85 °C	-40 C

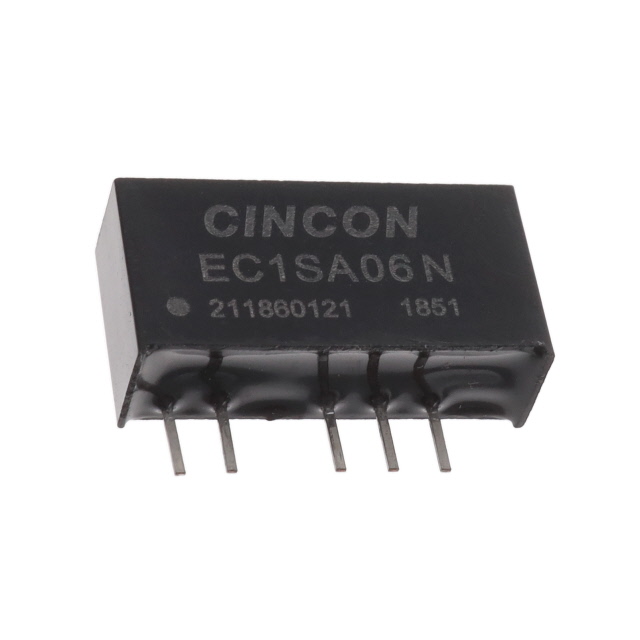

Cincon Electronics Co. LTD EC1SA06N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	74 %	ITE (Commercial)	1.5 kV	SCP	2	CE	5 V	Through Hole	7-SIP Module 5 Leads	4.5 V		5.5 V	85 °C	-40 C			-5 V			100 mA	100 mA
Cincon Electronics Co. LTD EC1SA16N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	77 %	ITE (Commercial)	1.5 kV	SCP	2	CE	5 V	Through Hole	7-SIP Module 5 Leads	10.8 V		13.2 V	85 °C	-40 C			-5 V			100 mA	100 mA
Cincon Electronics Co. LTD EC1SA03N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	79 %	ITE (Commercial)	1.5 kV	SCP	1	CE	15 V	Through Hole	7-SIP Module 5 Leads	4.5 V	67 mA	5.5 V	85 °C	-40 C
Cincon Electronics Co. LTD EC1SA24N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	81 %	ITE (Commercial)	1.5 kV	SCP	2	CE	12 V	Through Hole	7-SIP Module 5 Leads	21.6 V		26.4 V	85 °C	-40 C			-12 V	42 mA
Cincon Electronics Co. LTD EC1SA26N	Isolated Module	0.4 "	10.2 mm	6.1 mm	19.6 mm	0.24 "	0.77 in	79 %	ITE (Commercial)	1.5 kV	SCP	2	CE	5 V	Through Hole	7-SIP Module 5 Leads	21.6 V		26.4 V	85 °C	-40 C			-5 V			100 mA	100 mA
