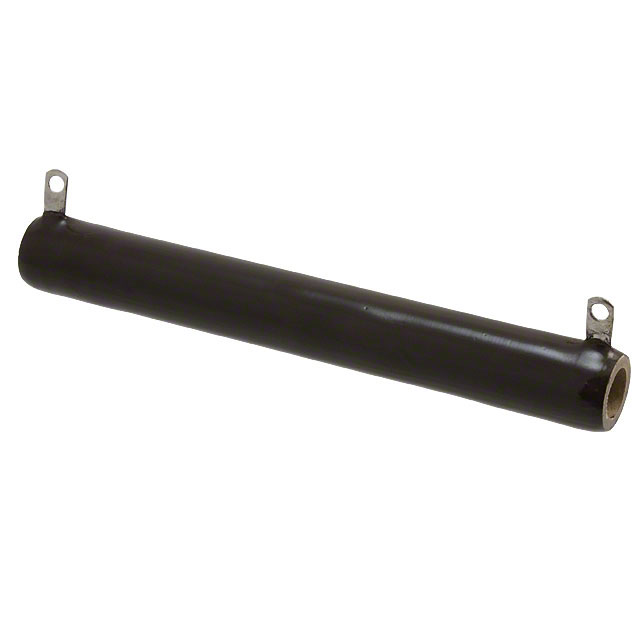

270 Series
Manufacturer: Ohmite
Beta
⌘K

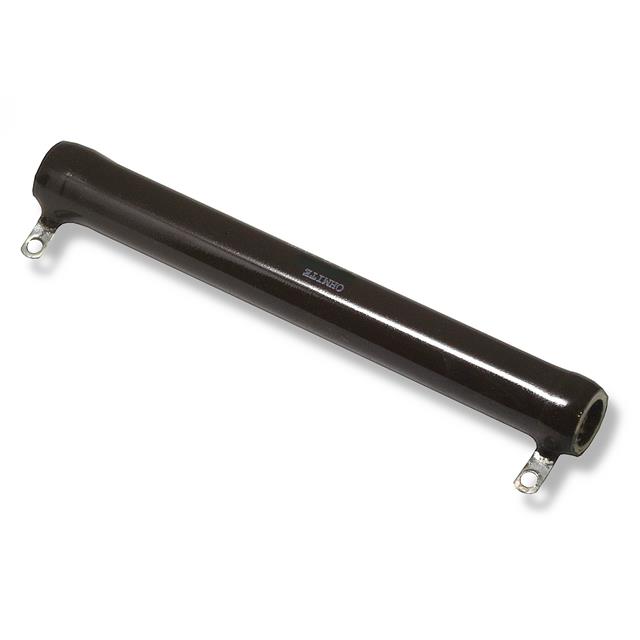

WIREWOUND RESISTORS - CHASSIS MOUNT 50WATT 8K 5% HIGH POWER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Mounting Feature | Tolerance | Composition | Power (Watts) | Lead Style | Features | Package / Case | Coating, Housing Type | Temperature Coefficient | Resistance | Temperature Coefficient | Size / Dimension [custom] | Size / Dimension [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | -55 C | 350 °C | 101.6 mm | 14.3 mm | 4 " | 0.563 " | Brackets (not included) | 5 % | Wirewound | 50 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | ||||
 Ohmite | -55 C | 350 °C | 44.4 mm | 7.94 mm | 1.748 " | 0.313 " | Brackets (not included) | 5 % | Wirewound | 12 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 820 Ohms | |||
 Ohmite | -55 C | 350 °C | 165.1 mm | 19.1 mm | 6.5 in | 0.752 in | Brackets (not included) | 5 % | Wirewound | 100 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 150 Ohms | |||
 Ohmite | -55 C | 350 °C | 266.7 mm | 28.6 mm | 10.5 " | 1.126 in | Brackets (not included) | 5 % | Wirewound | 225 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 5 kOhms | |||
Ohmite | -55 C | 350 °C | 44.4 mm | 7.94 mm | 1.748 " | 0.313 " | Brackets (not included) | 5 % | Wirewound | 12 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 330 Ohms | |||
Ohmite | 28.6 mm | 1.126 in | Brackets (not included) | 5 % | Wirewound | 175 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 2 Ohms | ±400ppm/°C | 8.5 in | 215.9 mm | |||||
 Ohmite | -55 C | 350 °C | 28.6 mm | 1.126 in | Brackets (not included) | 5 % | Wirewound | 175 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 7.5 kOhms | 8.5 in | 215.9 mm | |||
 Ohmite | -55 C | 350 °C | 165.1 mm | 19.1 mm | 6.5 in | 0.752 in | Brackets (not included) | 5 % | Wirewound | 100 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 1000 Ohms | |||
 Ohmite | -55 C | 350 °C | 50.8 mm | 14.3 mm | 2 in | 0.563 " | Brackets (not included) | 5 % | Wirewound | 25 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 6 kOhms | |||
Ohmite | -55 C | 350 °C | 101.6 mm | 14.3 mm | 4 " | 0.563 " | Brackets (not included) | 5 % | Wirewound | 50 W | Solder Lugs | Flame Retardant Coating Safety | Radial Tubular | Vitreous Enamel Coated | 260 ppm/°C | 7.5 kOhms |
