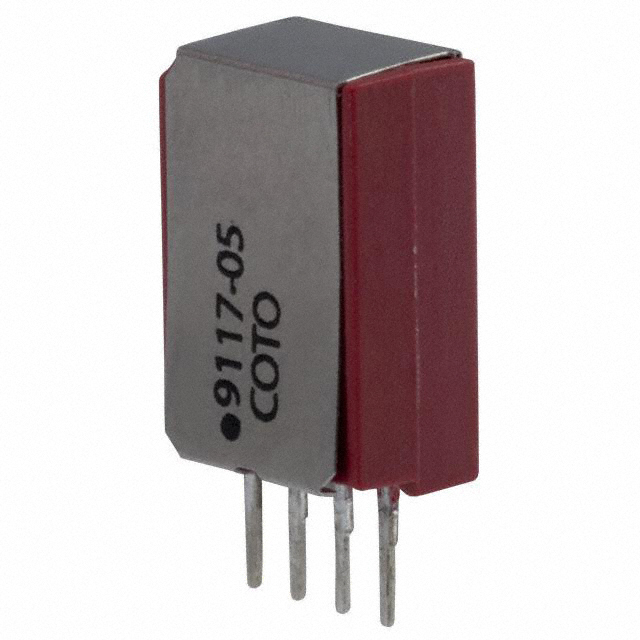

9117 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K
RELAY REED SPST 250MA 5V
| Part | Coil Resistance | Contact Form | Switching Voltage | Release Time | Must Operate Voltage | Features | Mounting Type | Must Release Voltage | Coil Type | Termination Style | Contact Rating (Current) | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 400 Ohms | SPST-NO (1 Form A) | 100 VAC 100 VDC | 0.1 ms | 3.75 VDC | Diode EMI Shielded | Through Hole | 0.5 VDC | Non Latching | PC Pin | 250 mA | 5 VDC | 85 °C | -20 ░C |
COTO TECHNOLOGY | 400 Ohms | SPST-NO (1 Form A) | 100 VAC 100 VDC | 0.1 ms | 3.75 VDC | EMI Shielded | Through Hole | 0.5 VDC | Non Latching | PC Pin | 250 mA | 5 VDC | 85 °C | -20 ░C |
