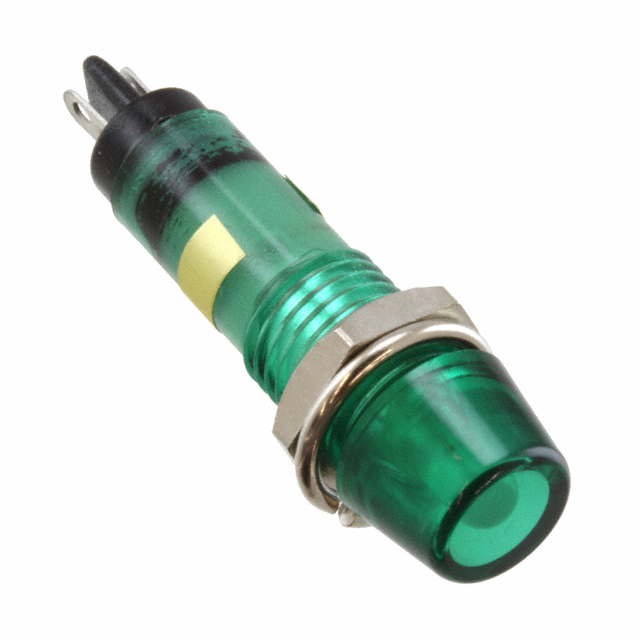

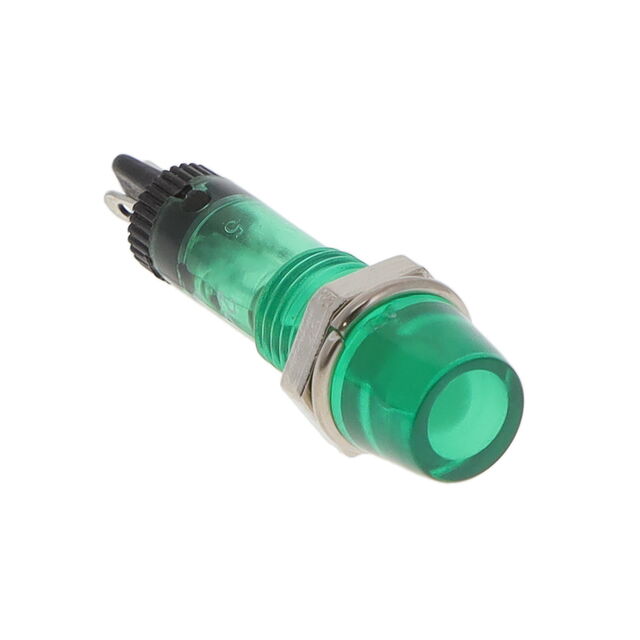

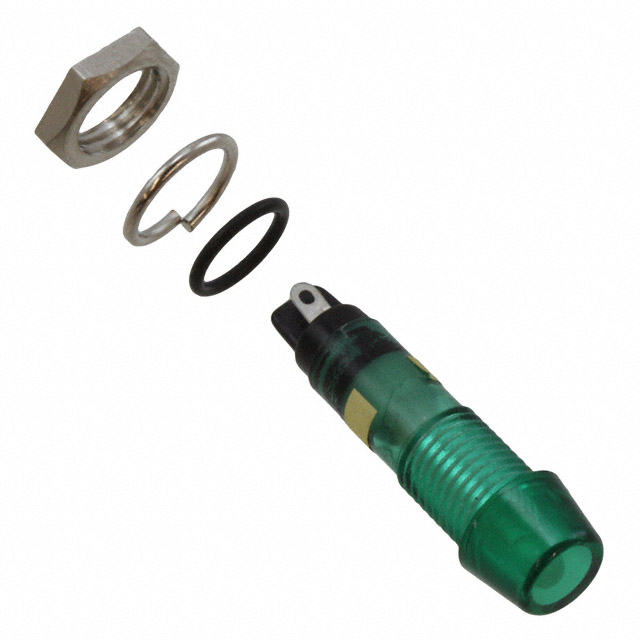

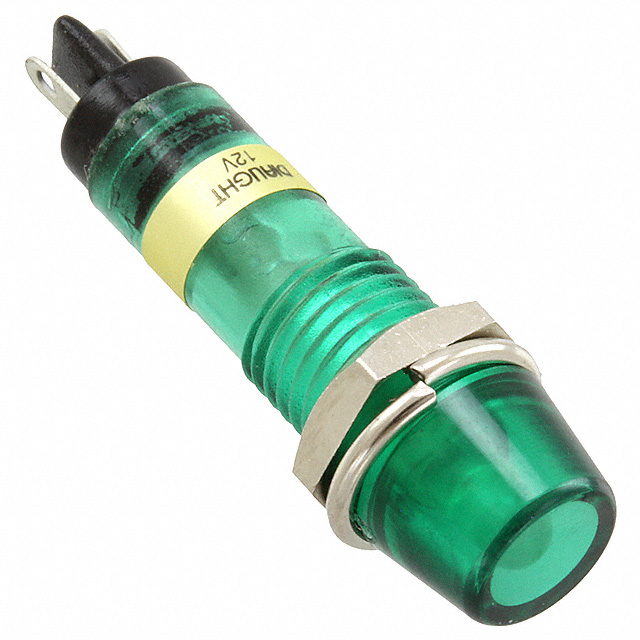

6073232 Series
Manufacturer: DIALIGHT
Catalog
LED PNL IND 7MM GRN INTERNL
| Part | Current | Lamp Color | Voltage | Termination Style | Type | Ingress Protection | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions | Ratings | Millicandela Rating | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | 15 mA | Green | 12 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | |
 DIALIGHT | 15 mA | Green | 6 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | |
 DIALIGHT | 15 mA | Green | 24 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | 6.8 mm |
DIALIGHT | 15 mA | Green | 6 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | |
 DIALIGHT | 15 mA | Green | 12 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | |
DIALIGHT | 15 mA | Green | 24 V | Solder Lug | LED | IP66 NEMA 4X | Round | 7.2 mm | 0.28 in | DC | 45 mcd | 6.8 mm |
