ANT-B14 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

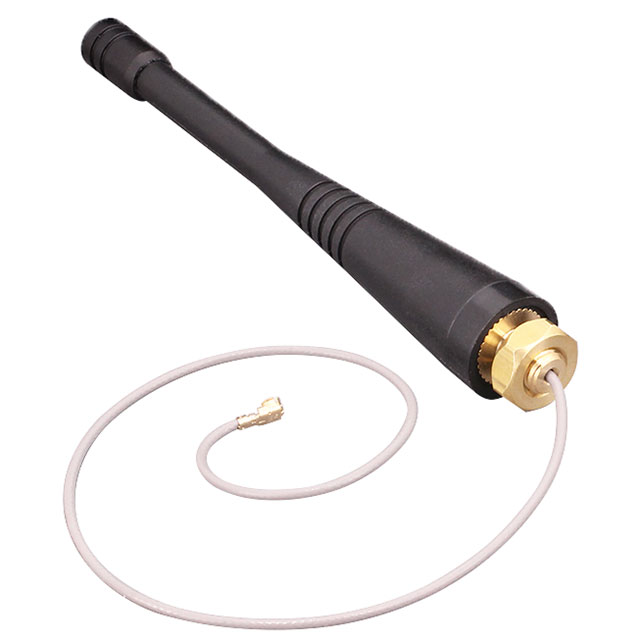

ANTENNA 1/4 WAVE WHIP LTE B14 1.32 UFL
| Part | Height (Max) [z] | VSWR | Antenna Type | Power - Max [Max] | Termination | Number of Bands | Frequency Range [Min] | Frequency Range [Max] | Gain | Frequency (Center/Band) | Features | RF Family/Standard | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.709 in 94.2 mm | 2 | Whip Straight | 10 W | I-PEX MHF1 U.FL (UMCC) | 1 | 750 MHz | 800 MHz | 1.9 dBi | 778 MHz | Cable - 216mm O-Ring Compatible | Cellular | 1 GHz | UHF | 300 MHz | Firstnet LTE Public Safety | Panel Mount |
 TE Connectivity AMP Connectors | 3.709 in 94.2 mm | 2 | Whip Straight | 10 W | Solder | 1 | 750 MHz | 800 MHz | 1.9 dBi | 778 MHz | Cable - 216mm O-Ring Compatible | Cellular | 1 GHz | UHF | 300 MHz | Firstnet LTE Public Safety | Panel Mount |
