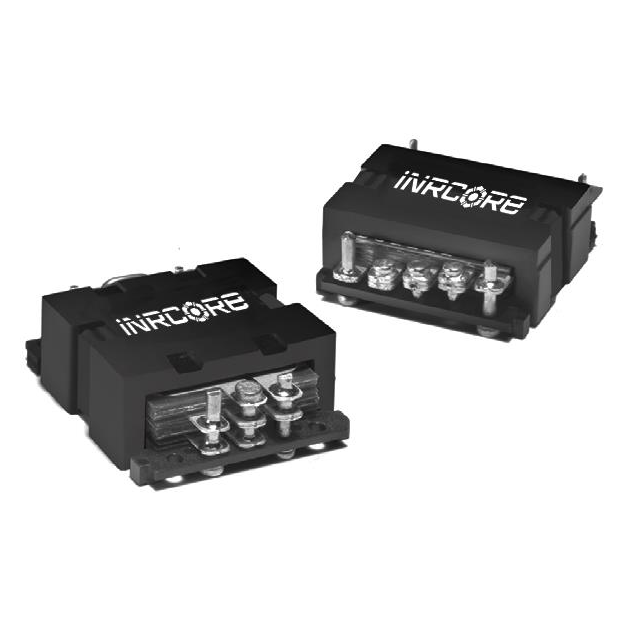

R8 Series

Manufacturer: iNRCORE

Catalog

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS INDUSTRIAL PLANAR TRANSFORMERS

Part	Type	Power - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Secondary Winding(s)	Primary Winding(s)	Height - Seated (Max) [Max] [z]	Voltage - Isolation	Termination Style	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
iNRCORE R8313NLT	Planar	140 W	0.92 " 23.37 mm	0.83 " 21.59 mm	Dual Multiple Taps	Dual	0.339 in 8.6 mm	1750 V	Quick Connect Solder	8.6 mm	Surface Mount	23.37 mm	21.08 mm
iNRCORE R8235NLT	Planar	250 W	1.16 " 29.46 mm	1 "	Dual	Dual	0.358 in 9.1 mm	1750 V	Quick Connect Solder		Surface Mount	29.46 mm		9.1 mm	25.4 mm
iNRCORE R8238NL	Planar	250 W	1.16 " 29.46 mm	1 "	Dual	Dual	0.358 in 9.1 mm	1750 V	Quick Connect Solder		Surface Mount	29.46 mm		9.1 mm	25.4 mm
iNRCORE R8207NLT	Planar	250 W	1.16 " 29.46 mm	1 "	Multiple Taps Single	Dual		1750 V	Quick Connect Solder		Surface Mount	29.46 mm			25.4 mm	0.402 in 10.2 mm	10.2 mm
iNRCORE R8205NL	Planar	250 W	1.16 " 29.46 mm	1 "	Multiple Taps Single	Dual		1750 V	Quick Connect Solder		Surface Mount	29.46 mm			25.4 mm	0.402 in 10.2 mm	10.2 mm
