600V IGBT Intelligent Power Module (IPM)
Key Features
• 3phase DC/AC Inverter, 600V/20A, Low Side IGBT Open Emitter, Built -in Bootstrap Diode, High Side IGBT Gate Driver (HVIC): SOI (Silicon On Insulator) Process, Drive Circuit, High Voltage Level Shifting, Current Limit for Bootstrap Diode, Control Supply Under-Voltage Locked Out (UVLO), Low Side IGBT Gate Driver (LVIC): Drive Circuit, Short Circuit Current Protection (SCP), Control Supply Under Voltage Locked Out (UVLO), Thermal Shutdown (TSD), Temperature Output by Analog Signal (VOT), Fault Signal (LVIC) Corresponding to SCP (Low Side IGBT), TSD, UVLO Fault, Input Interface 3.3V, 5V Line, UL Recognized: UL1557 File E468261
Description
AI

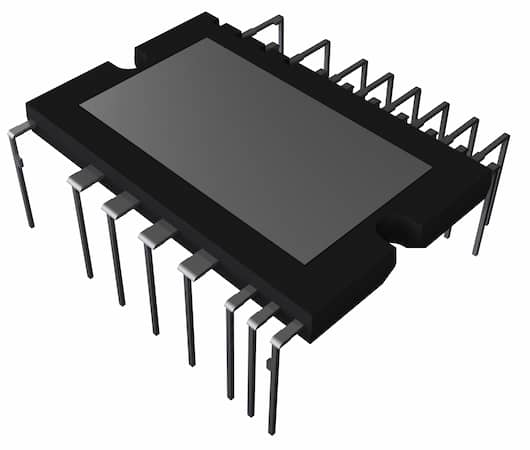

BM63375S-VA/-VC is an Intelligent Power Module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes.
