MUR25 Series

Catalog

RECTIFIERS 400V 25A SUPER FAST RECOVERY

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Package / Case	Supplier Device Package	Speed	Technology	Voltage - Forward (Vf) (Max) @ If

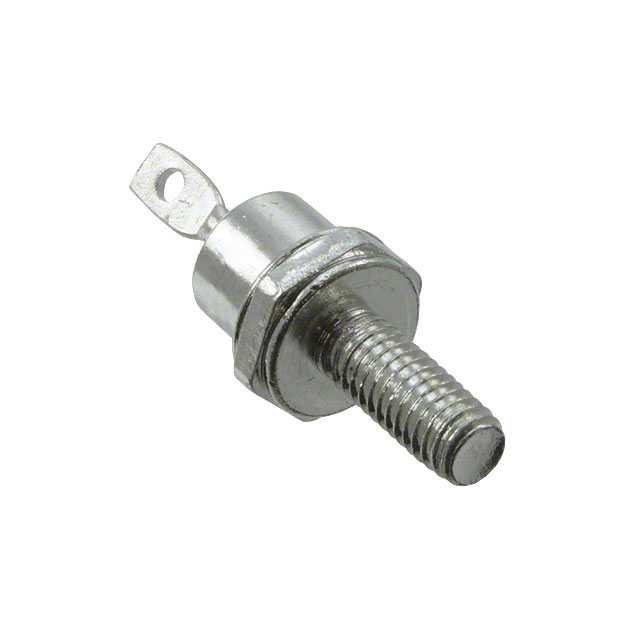

GeneSiC Semiconductor MUR2540	-55 °C	150 °C	25 A	10 µA	75 ns	400 V	1.3 V	Chassis Stud Mount	DO-203AA DO-4 Stud	DO-4	200 mA 500 ns	Standard
GeneSiC Semiconductor MUR2510	-55 °C	150 °C	25 A	10 µA	75 ns	100 V		Chassis Stud Mount	DO-203AA DO-4 Stud	DO-4	200 mA 500 ns	Standard	1 V
