FP150R12 Series

Manufacturer: INFINEON

Catalog

IGBT MODULES 1200 V, 150 A PIM IGBT MODULE

Part	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Configuration	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Power - Max [Max]
INFINEON FP150R12N3T4PB81BPSA1
INFINEON FP150R12KT4B11BPSA1	2.1 V	Module	1 mA	1200 V	Three Phase Bridge Rectifier	9.35 nF	150 A	Three Phase Inverter	Module	Chassis Mount	-40 °C	150 °C	Trench Field Stop

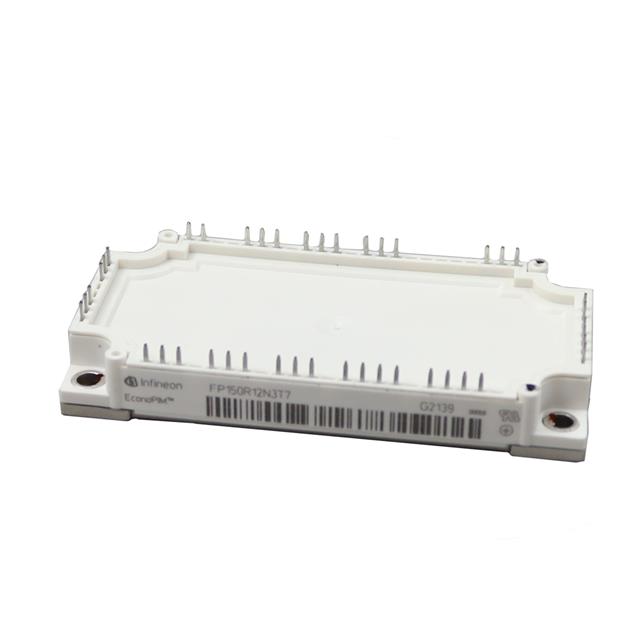

INFINEON FP150R12N3T7BPSA1	1.55 V	AG-ECONO3	12 µA	1200 V	Three Phase Bridge Rectifier	30.1 nF	150 A	Three Phase Inverter	Module	Chassis Mount	-40 °C	175 °C	Trench Field Stop	20 mW

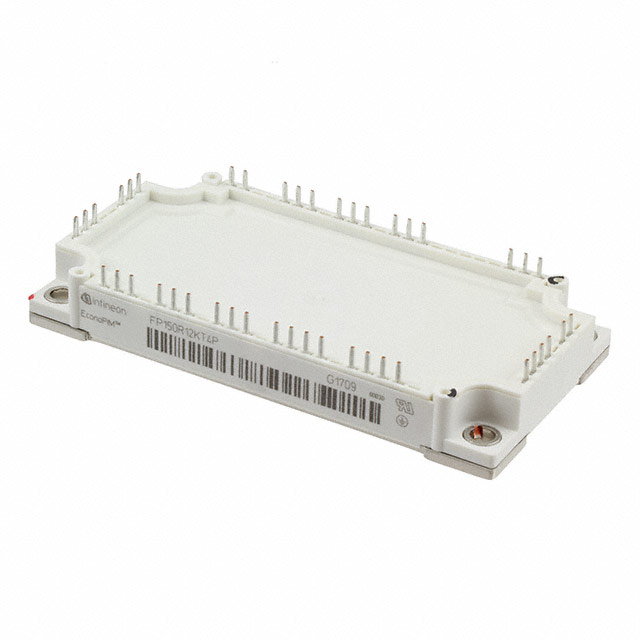

INFINEON FP150R12KT4PB11BPSA1	2.1 V	Module	1 mA	1200 V	Three Phase Bridge Rectifier	9.35 nF	150 A	Three Phase Inverter	Module	Chassis Mount	-40 °C	150 °C	Trench Field Stop
INFINEON FP150R12KT4BPSA1	2.1 V	Module	1 mA	1200 V	Three Phase Bridge Rectifier	9.35 nF	150 A	Three Phase Inverter	Module	Chassis Mount	-40 °C	150 °C	Trench Field Stop
