LLF40 Series

Catalog

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Output Type	Type	Voltage Rating	Minimum Liquid Specific Gravity [Min]	Material - Housing & Prism	Switch Actuation Level	Switch Actuation Level	Mounting Type	Current	Output Configuration	Mounting Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]

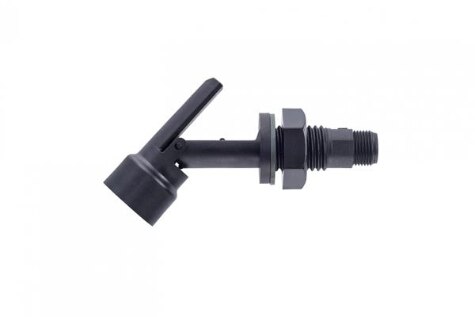

Sensata-Crydom LLF43YFP	Switch (Single Float)	Liquid	120 VDC	0.7	Nylon	0.394 in	10 mm	M12 Thread Panel Mount	600 mA	SPST-NC/NO
Sensata-Crydom LLF46H100RF	Switch (Single Float)	Liquid	300 VDC	0.7	Polyphenylene Sulphide (PPS)	0.394 in	10 mm	Male NPT	1 A	SPST-NC/NO	1 in	25.4 mm	120 °C	-10 °C

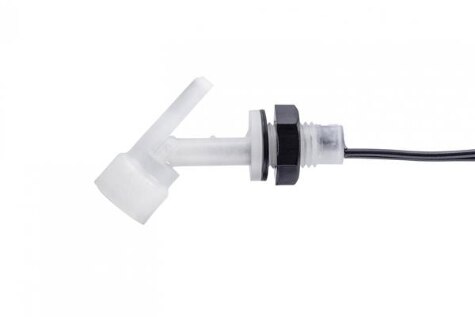

Sensata-Crydom LLF44H100RF	Switch (Single Float)	Liquid	300 VDC	0.7	Polypropylene (PP)	0.394 in	10 mm	Male NPT	1 A	SPST-NC/NO	1 in	25.4 mm	100 °C	-20 ░C

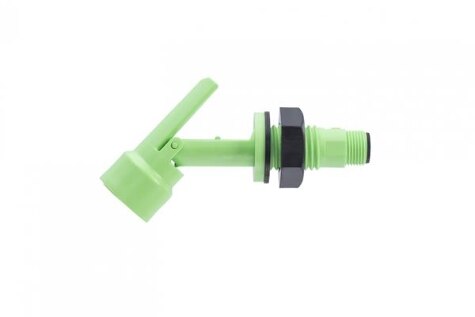

Sensata-Crydom LLF47YGP	Switch (Single Float)	Liquid	120 VDC	0.7	Polyvinylidene Fluoride (PVDF)	0.394 in	10 mm	M12 Thread Panel Mount	600 mA	SPST-NC/NO			105 ░C	-10 °C

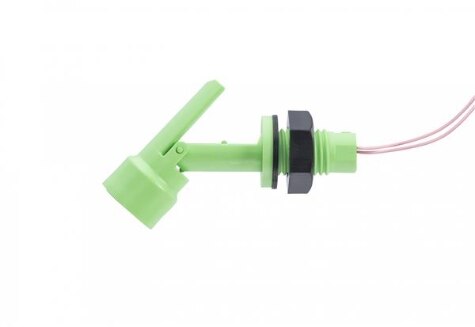

Sensata-Crydom LLF47H100GG	Switch (Single Float)	Liquid	300 VDC	0.7	Polyvinylidene Fluoride (PVDF)	0.394 in	10 mm	Male NPT	1 A	SPST-NC/NO	1 in	25.4 mm	105 ░C	-10 °C
Sensata-Crydom LLF44YFP	Switch (Single Float)	Liquid	120 VDC	0.7	Polypropylene (PP)	0.394 in	10 mm	M12 Thread Panel Mount	600 mA	SPST-NC/NO			100 °C	-20 ░C
Sensata-Crydom LLF47Y100GG	Switch (Single Float)	Liquid	120 VDC	0.7	Polyvinylidene Fluoride (PVDF)	0.394 in	10 mm	Male NPT	600 mA	SPST-NC/NO	1 in	25.4 mm	105 ░C	-10 °C
Sensata-Crydom LLF43HFP	Switch (Single Float)	Liquid	300 VDC	0.7	Nylon	0.394 in	10 mm	M12 Thread Panel Mount	1 A	SPST-NC/NO
Sensata-Crydom LLF48H100RF	Switch (Single Float)	Liquid	300 VDC	0.7	Polypropylene (PP)	0.394 in	10 mm	Male NPT	1 A	SPST-NC/NO	1 in	25.4 mm	100 °C	-20 ░C
Sensata-Crydom LLF47HFP	Switch (Single Float)	Liquid	300 VDC	0.7	Polyvinylidene Fluoride (PVDF)	0.394 in	10 mm	M12 Thread Panel Mount	1 A	SPST-NC/NO			105 ░C	-10 °C
